Extended Data Fig. 9: MEZ-XRF imaging of standard Z-tags on breast tumor tissue.
From: Multielement Z-tag imaging by X-ray fluorescence microscopy for next-generation multiplex imaging

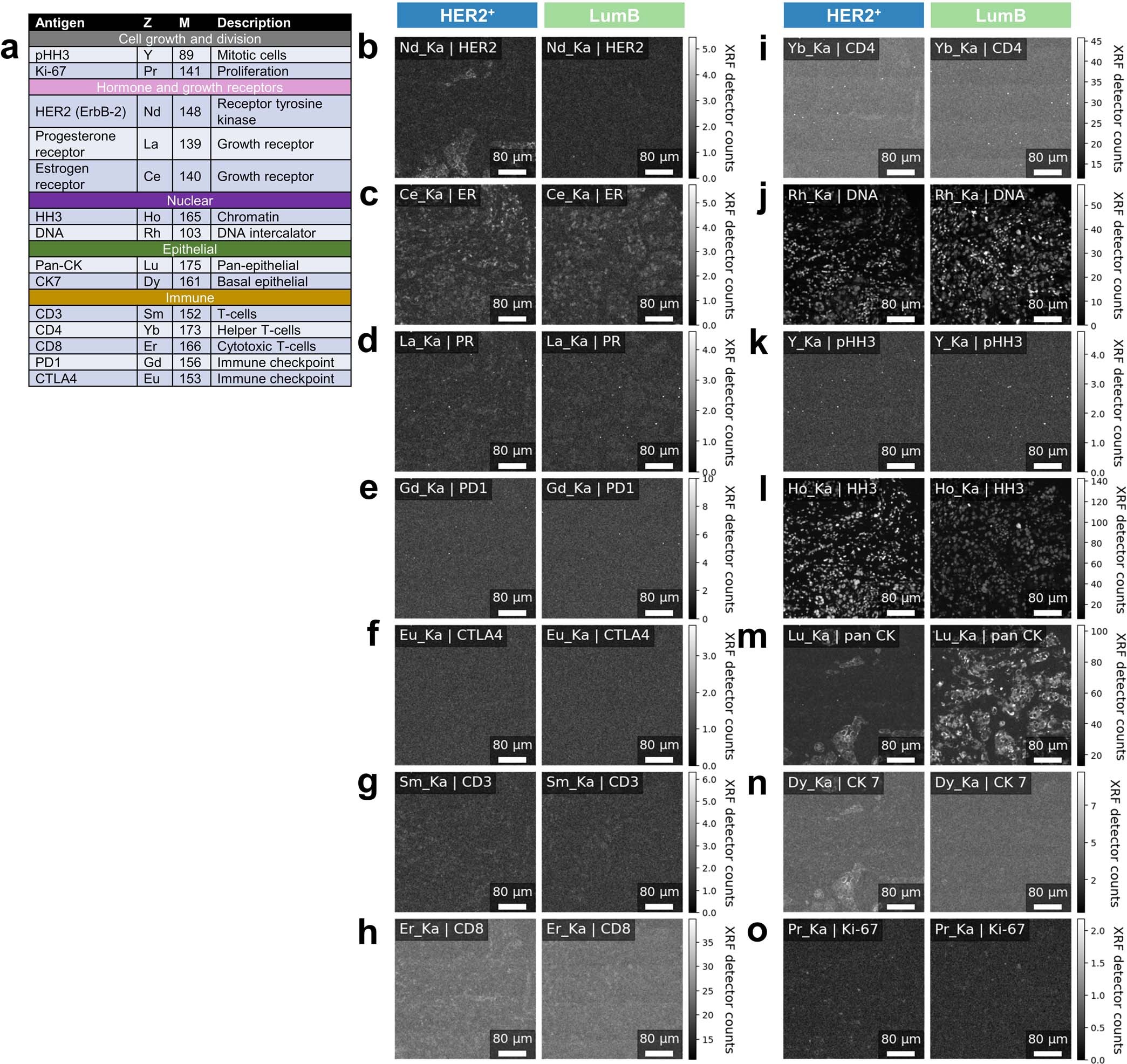

a, Antibody panel used for standard Z-tags. b-o, MEZ-XRF images of breast tumour tissues stained with standard Z tags. Columns indicate the different tissue samples, and rows indicate markers and element/emission lines. All XRF emissions were recorded with state-of-the-art GeCMOS2. Scans were imaged with a 500-nm focused 69-keV X-ray beam with 500-nm raster steps at 50 Hz. Top left label indicate element_emission lines/marker (as in Fig. 2).
