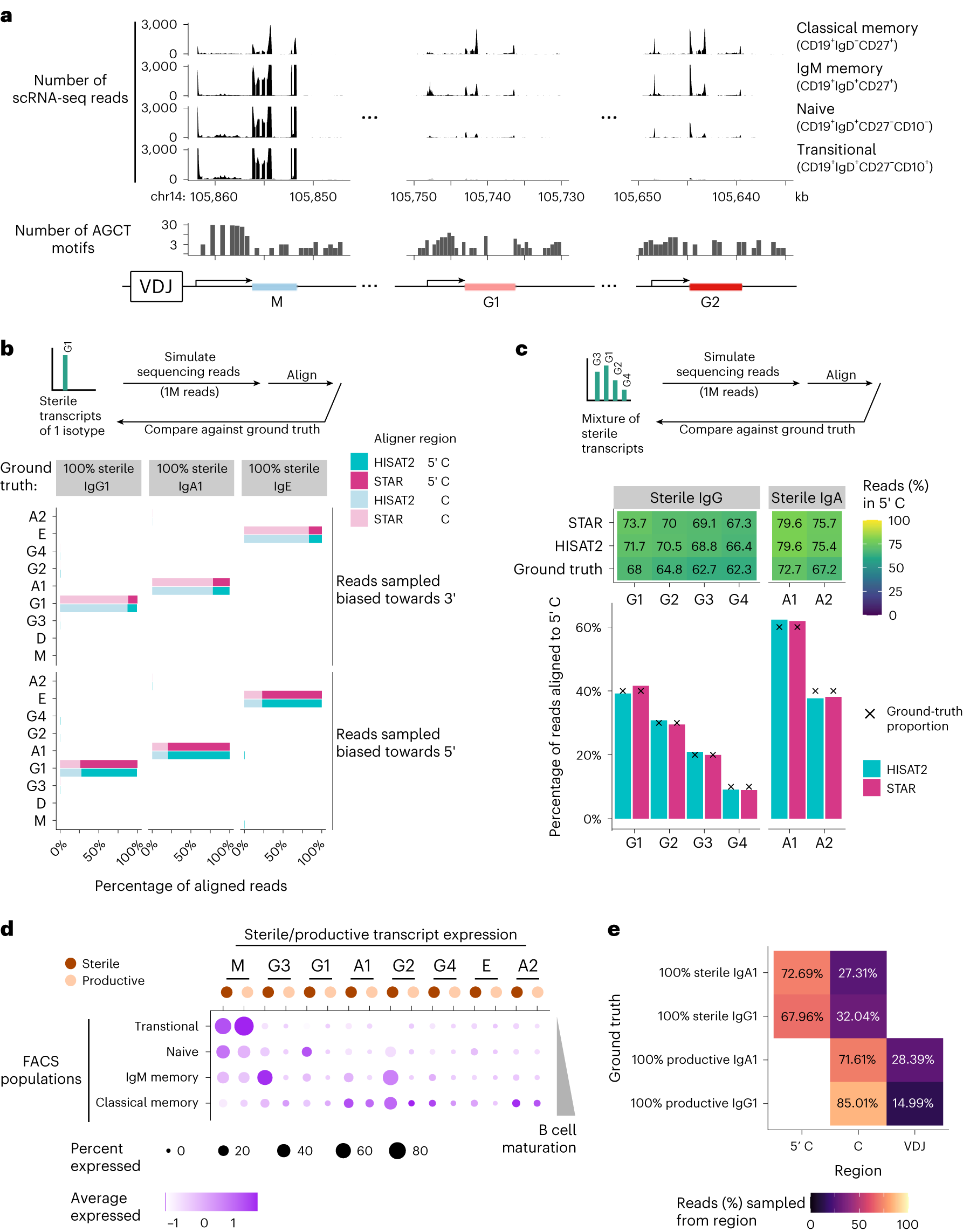

Fig. 2: sciCSR reconstitutes productive and sterile IgH transcription levels in different B cell subsets.
