Extended Data Fig. 6: 2D images of the absorbed light flux at each of the 20 z-axis locations within the detection volume.

From: Fluorescence to measure light intensity

Extended Data Fig. 6: 2D images of the absorbed light flux at each of the 20 z-axis locations within the detection volume.The alternative text for this image may have been generated using AI.

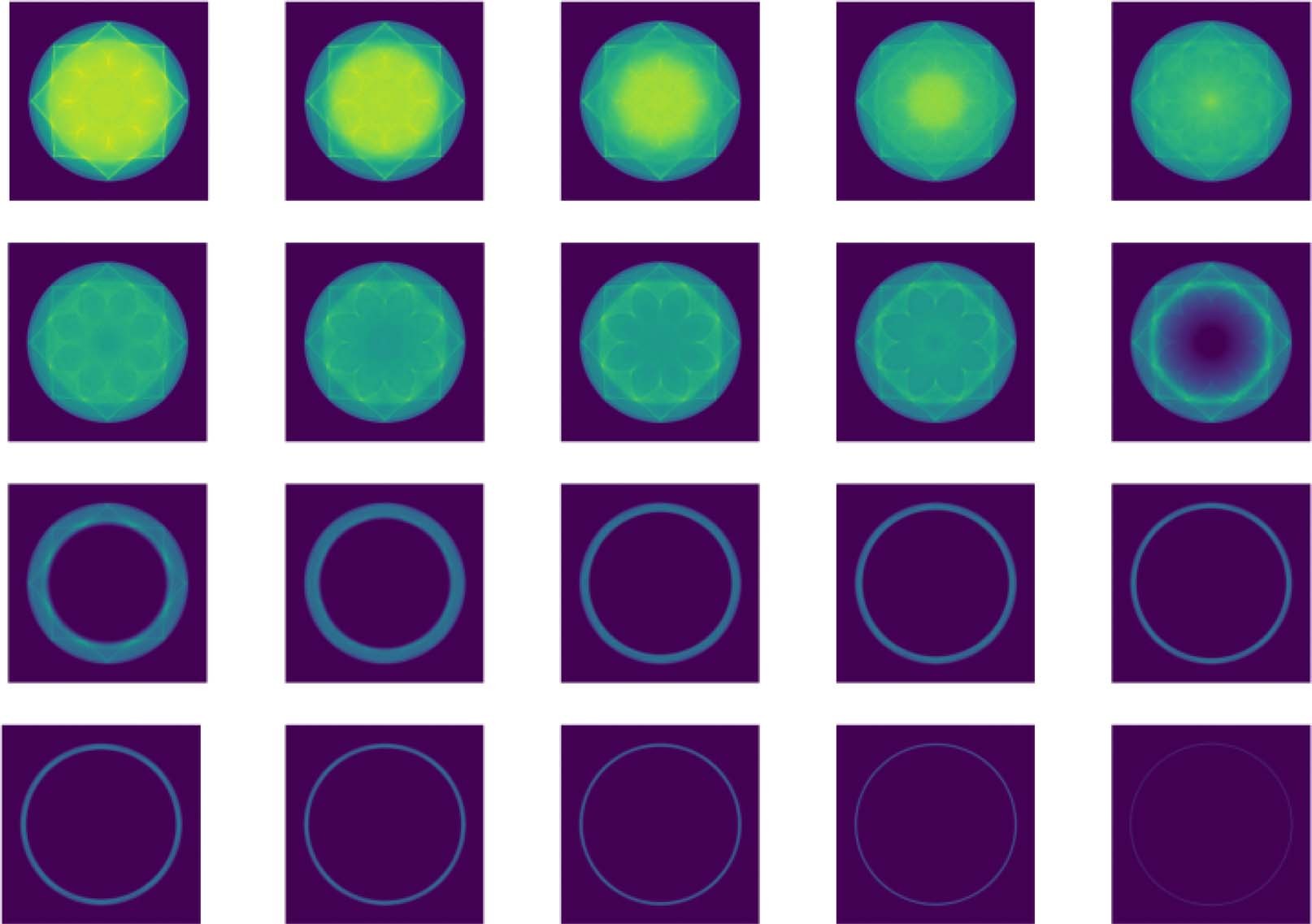

The first image corresponds to the Dronpa-2 solution space adjacent to the bottom of the Petri dish, and the following images, going left to right, and down, in a raster fashion, correspond to image slices progressively closer to the fluid surface. Since this work did not consider the absolute light intensity, but rather the distribution, a color scale is omitted.
