Extended Data Fig. 7: 2x frame interpolation on moving lysosome of SHSY5Y cells.

From: Content-aware frame interpolation (CAFI): deep learning-based temporal super-resolution for fast bioimaging

Extended Data Fig. 7: 2x frame interpolation on moving lysosome of SHSY5Y cells.The alternative text for this image may have been generated using AI.

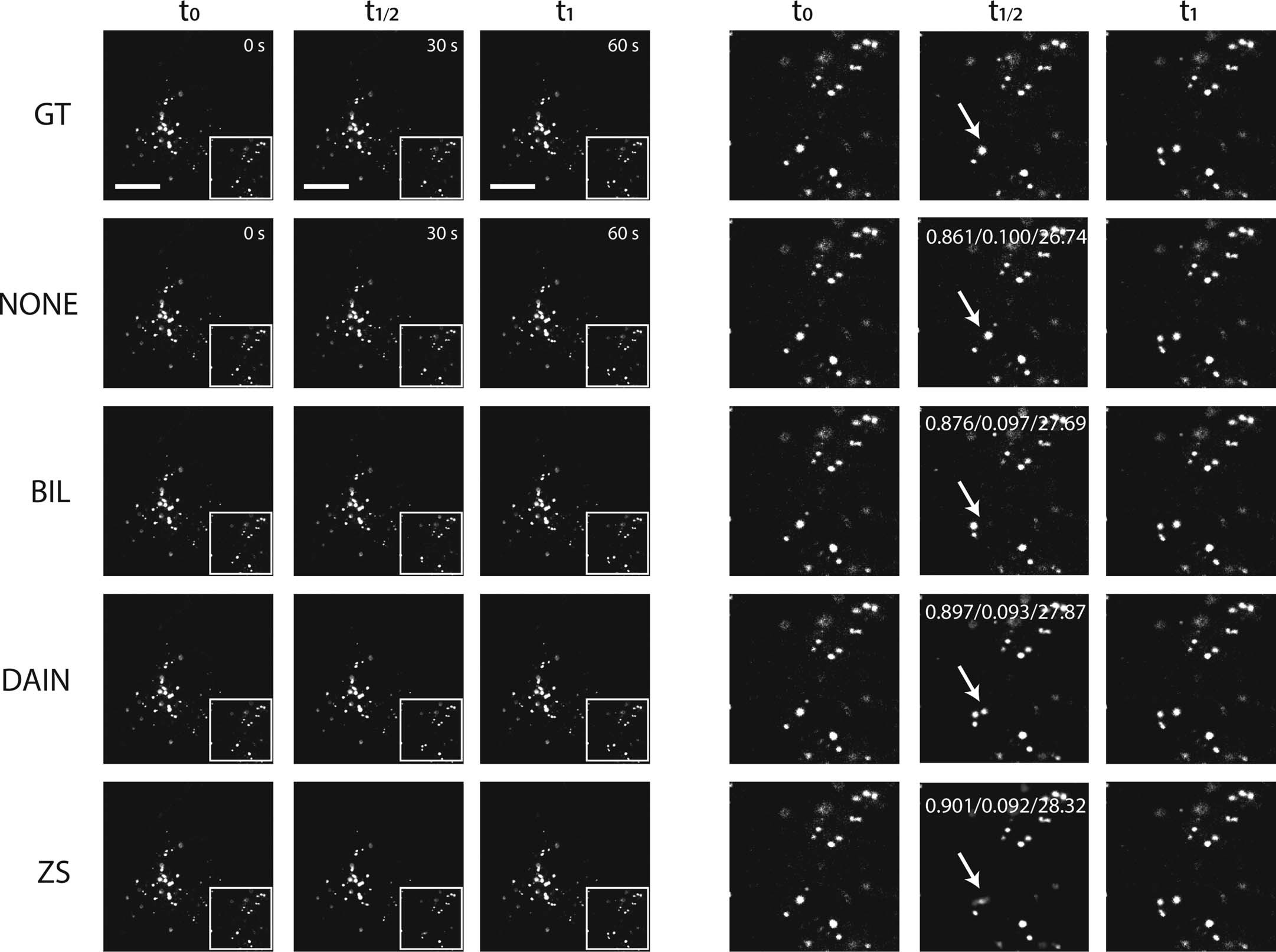

2x frame interpolation of NONE, BIL, DAIN and ZS for lysosomes of SH-SY5Y cells recorded on a point-scanning confocal microscope. Overall ZS produces slightly better-quality results than DAIN even though ZS misses faster moving lysosomes which DAIN is able to capture well (example highlighted with white arrows in zoomed-in sections on the right). SSIM/RMSE/PSNR values displayed in the zoomed-in interpolated images. CAFI tools clearly outperform NONE and BIL interpolations. Scale bar: 10 μm.
