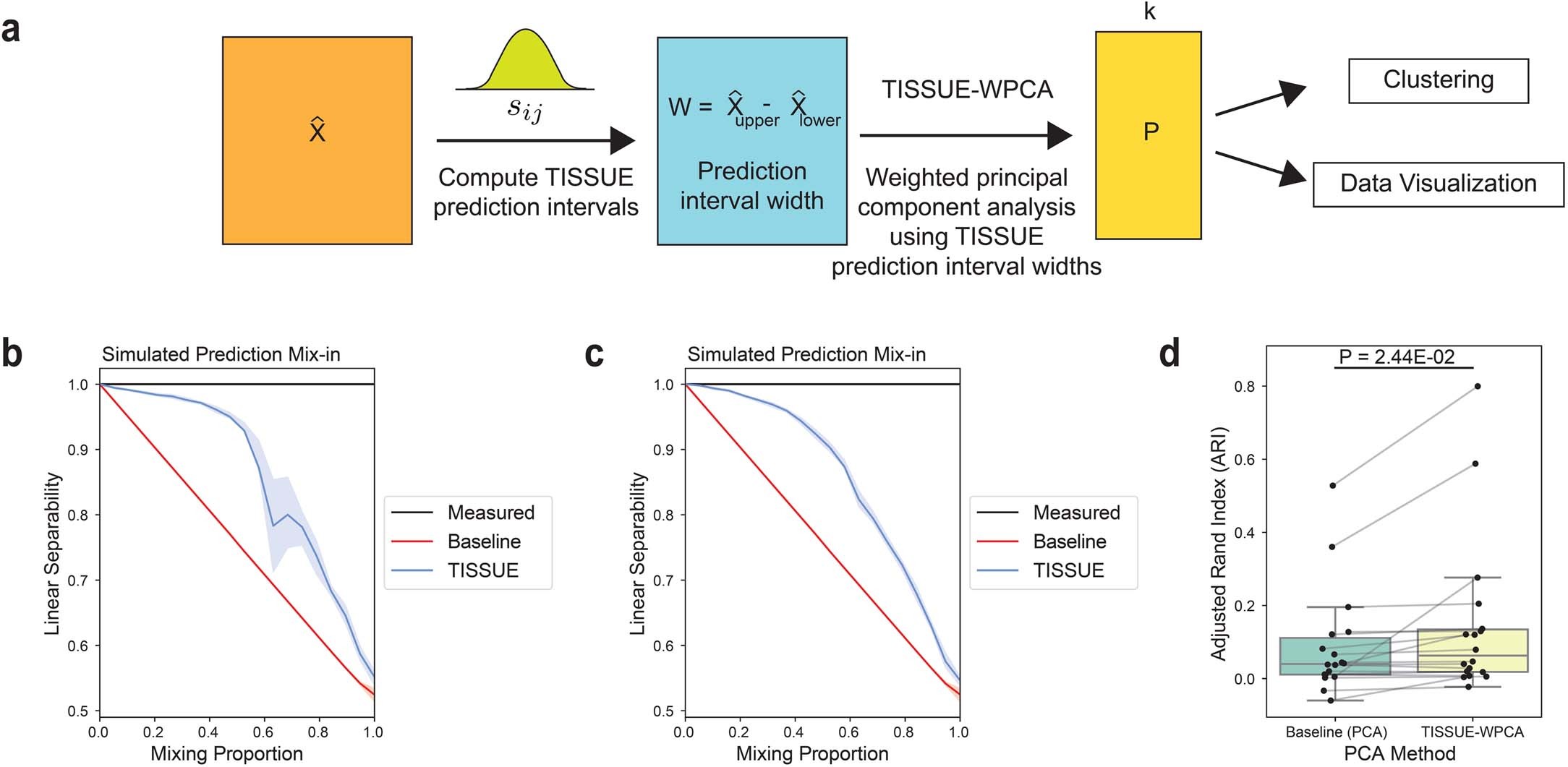

Extended Data Fig. 7: Uncertainty-aware clustering and label separation with TISSUE-WPCA.

a, Schematic illustration of the weighted principal component analysis (WPCA) pipeline where the inverse TISSUE prediction interval width is used to obtain principal components from WPCA, which are then used for downstream tasks of clustering and label separation. b, Linear separability measured as the binary classification accuracy of a linear kernel support vector classifier fitted on the two cell clusters in the simulated spatial transcriptomics data as a function of the simulated mix-in proportion. The classifier was trained on the top 15 principal components obtained from the measured gene expression profiles with PCA, predicted gene expression profiles with PCA, and predicted gene expression profiles with TISSUE-WPCA. For TISSUE-WPCA, weights were determined by binarizing the inverse normalized 67% prediction interval width (see Methods). Results were obtained using automated stratified grouping. Bands represent the interquartile range and solid line denotes the median linear separability across 20 simulated datasets. c, Same as in panel b except with TISSUE-WPCA weighting using the log-transformed inverse normalized 67% prediction interval width. d, Adjusted Rand index (ARI) for k-means clustering (k = 3) on the top 15 principal components obtained from PCA on the predicted expression or TISSUE-WPCA on the predicted gene expression for six real spatial transcriptomics dataset and label pairings and all prediction methods. P-value was computed using a paired two-sided t-test on n=18 sets of predictions across 3 independent prediction methods and 6 independent dataset and class label combinations. The box corresponds to quartiles of the metrics and the whiskers span up to 1.5 times the interquartile range of the metrics.
