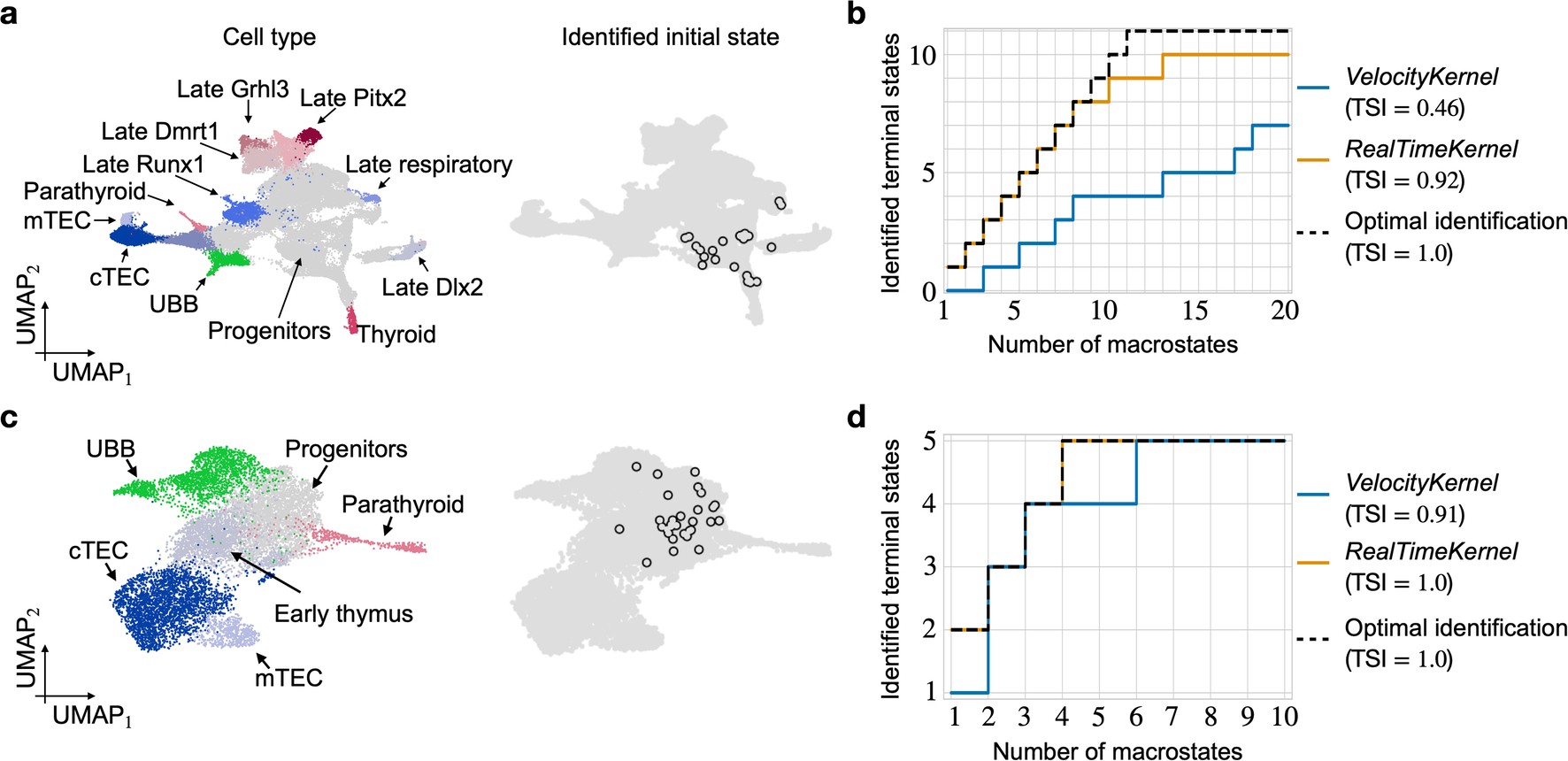

Extended Data Fig. 8: Initial and terminal state identification of pharyngeal endoderm development.
From: CellRank 2: unified fate mapping in multiview single-cell data
a. UMAP embedding of pharyngeal endoderm development dataset (left) and identified initial state population (right). Cells are colored according to cell types identified in the original study37. b. Identified number of terminal states with increasing number of macrostates using the full pharyngeal endoderm development dataset. c. UMAP embedding of subsetted pharyngeal endoderm dataset (right) and identified initial state (right); cells are colored according to the original study37. d. Same as b. but for the subsetted case.
