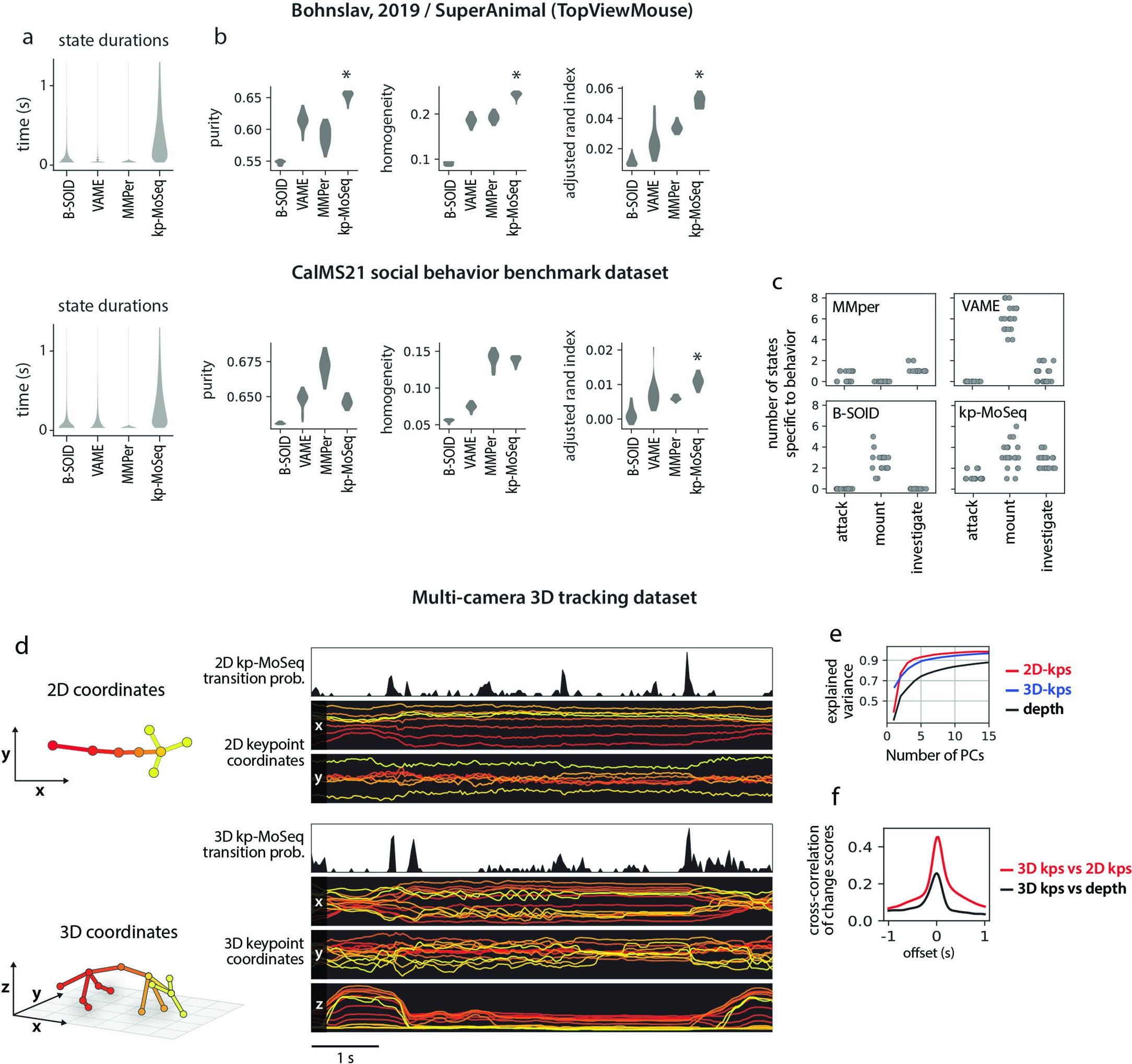

Extended Data Fig. 9: Supervised behavior benchmark.

a) Distribution of state durations from each behavior segmentation method for the open field benchmark (top) and the CalMS21 social behavior benchmark (bottom). b) Three different similarity measures applied to the output of each unsupervised behavior analysis method, showing the median (gray bars) and inter-quartile interval (black lines) across independent model fits (N=20; * P < 10⁻⁵, for keypoint-MoSeq vs. each other method, Mann-Whitney U test). c) Number of unsupervised states specific to each human-annotated behavior in the CalMS21 dataset, shown for 20 independent fits of each unsupervised method. A state was defined as specific if > 50% of frames bore the annotation. d) Left: Keypoints tracked in 2D (top) or 3D (bottom) and corresponding egocentric coordinate axes. Right: example keypoint trajectories and transition probabilities from keypoint-MoSeq. Transition probability is defined, for each frame, as the probability of a syllable transition occurring on that frame. e) Cumulative fraction of explained variance for increasing number of principal components (PCs). PCs were fit to egocentrically aligned 2D keypoints, egocentrically aligned 3D keypoints, or depth videos respectively. f) Cross-correlation between the 3D keypoint change score and change scores derived from 2D keypoints and depth respectively (based on N=20 model fits).
