Fig. 3: Using incorrect atomic models in DynaMight.
From: DynaMight: estimating molecular motions with improved reconstruction from cryo-EM images

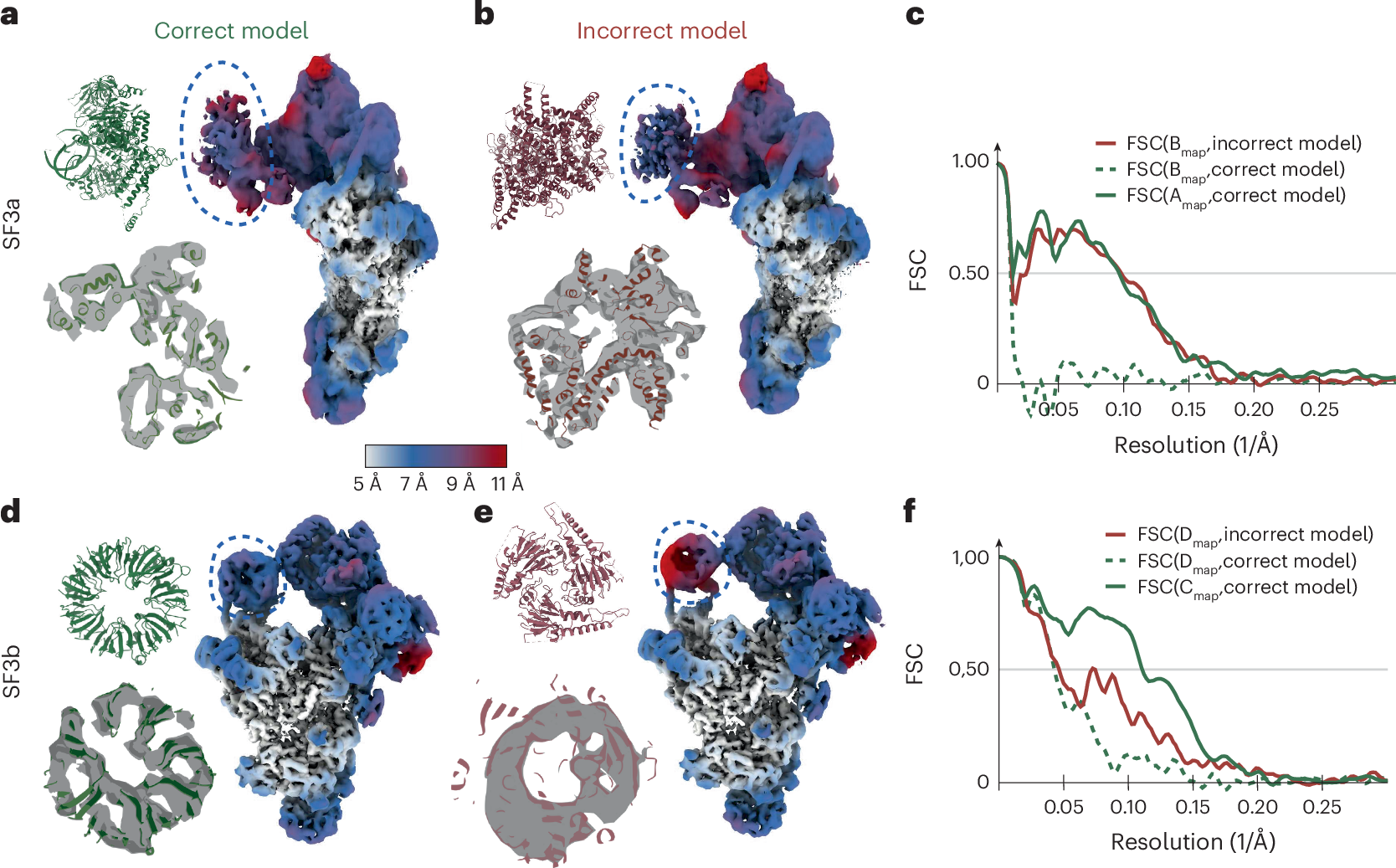

a, Reconstruction after deformed backprojection using the correct atomic model for the SF3a region, colored by local resolution (right). The correct atomic model for the SF3a region is shown in green on the top left; an overlay of that model with the reconstructed density after deformed backprojection is shown on the bottom left. b, As in a, but using an incorrect atomic model for the SF3a region (shown in red). c, Fourier shell correlation (FSC) curves between the maps in a or b, masked around the SF3a region, and the correct (green) or incorrect (red) atomic models. d–f, As in a–c, but using different atomic models for the SF3b region: reconstruction after deformed backprojection using the correct atomic model for the SF3b region (d), using an incorrect atomic model for the SF3b region (e) and FSC curves between maps in d or e, masked around the SF3b region, and the correct or incorrect atomic models (f).
