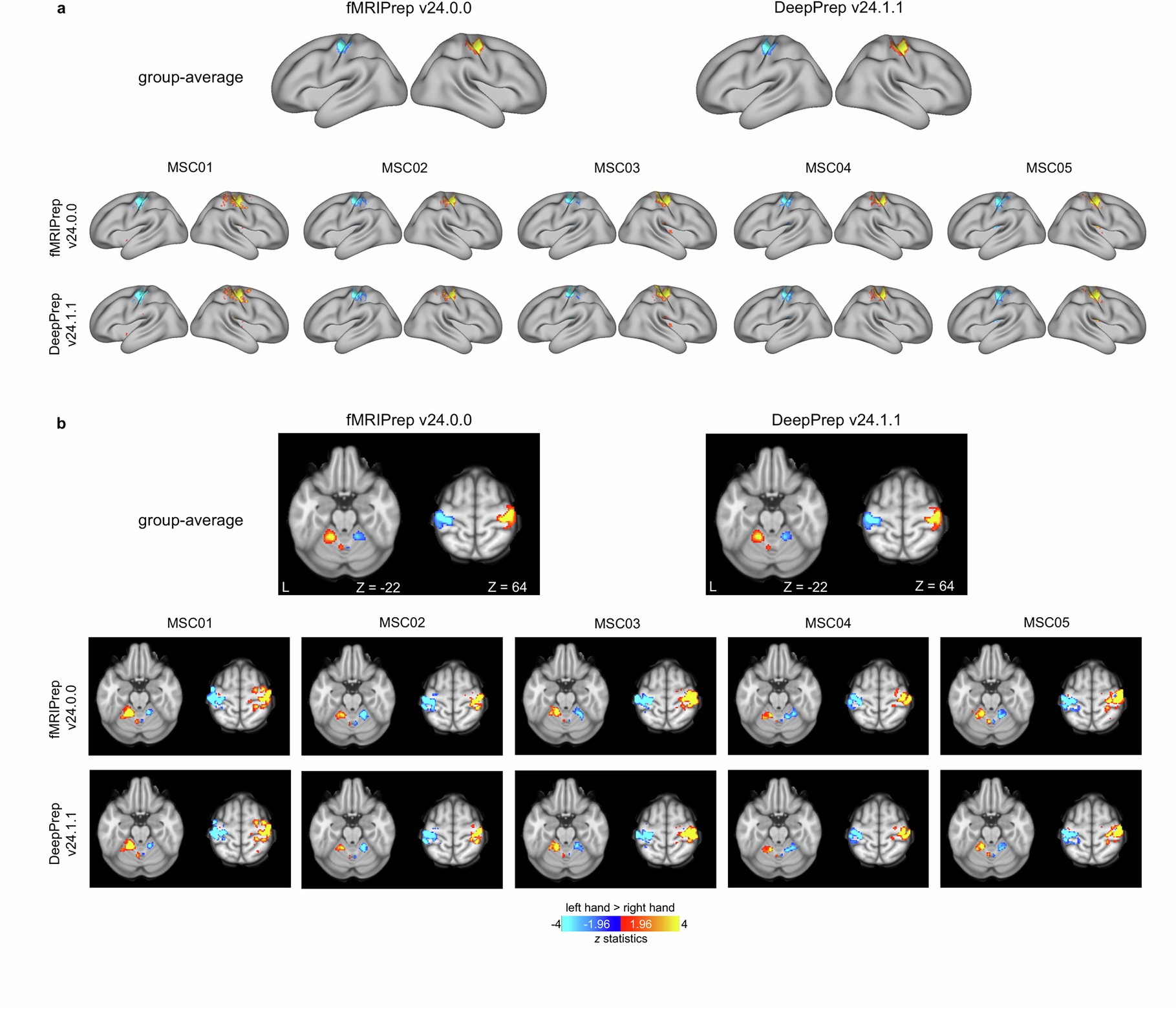

Extended Data Fig. 7: Comparable patterns and strength of task-evoked responses between DeepPrep and fMRIPrep.
DeepPrep and fMRIPrep were employed for preprocessing the motor task-evoked fMRI data from the MSC dataset. Subsequent processing steps, including high-pass filtering and general linear modeling, were consistent between the two pipelines. a) Contrast maps derived from the surface-based pipelines depicting the activation patterns for the left hand vs. right hand task are presented on a cortical surface template. b) Volumetric contrast maps yielded by the volumetric pipelines are shown in a volumetric template.
