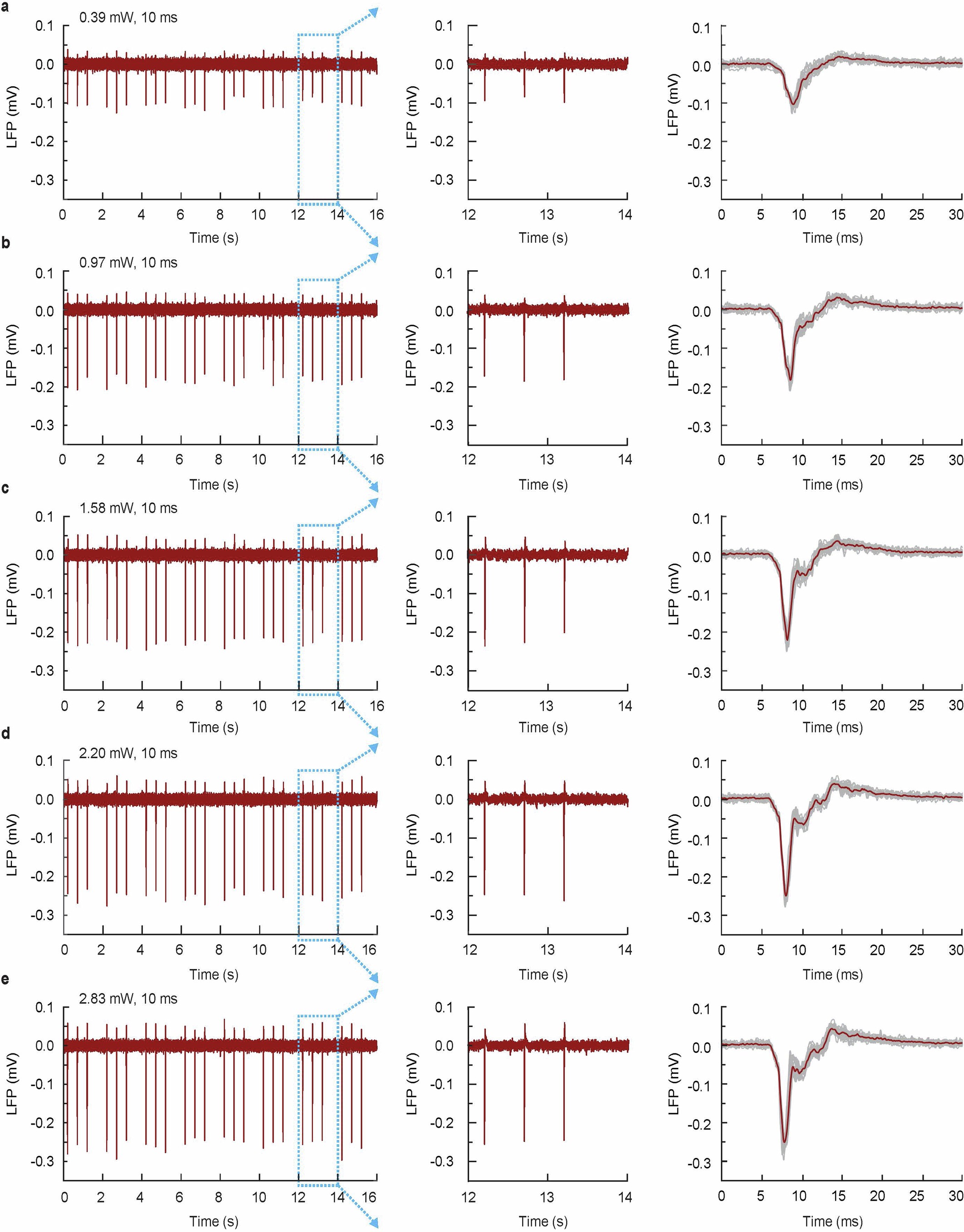

Extended Data Fig. 2: Power-dependent LFP traces.
From: WISDEM: a hybrid wireless integrated sensing detector for simultaneous EEG and MRI
The reconstructed LFP traces obtained during optogenetic stimulation of a representative rat under different light power (a–e). Stimulation pulses were applied at 0.2, 0.4, 0.6, 2.2, 2.4, 2.6, 4.2, 4.4, 4.6, 6.2, 6.4, 6.6, 8.2, 8.4, 8.6, 10.2, 10.4, 10.6, 12.2, 12.4, 12.6, 14.2, 14.4 and 14.6 s following the initial starting point of pulse sequence. The gray lines in the right column show all the LFP traces after individual stimulation pulses (n = 24), while the red line represents the average value of gray traces.
