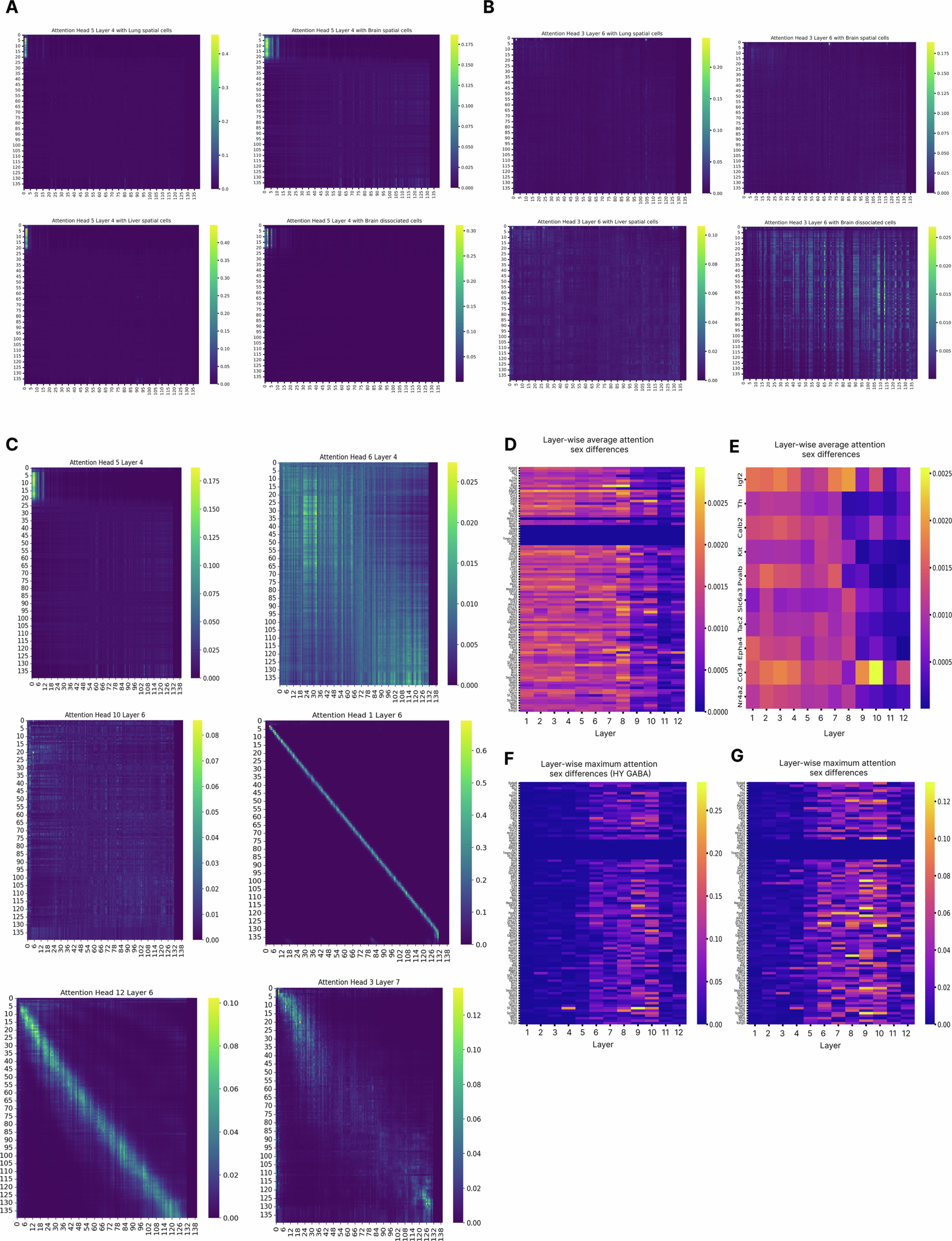

Extended Data Fig. 4: Analysis of Nicheformer attention heads and layer-wise attention gender difference.

Shown are the attention matrices obtained from the head 5 of the Nicheformer layer 4 when processing lung spatial cells (top left), brain spatial cells (top right), liver spatial cells (bottom left) and brain dissociated cells (bottom right). It can be seen that this attention head uniquely focuses on the most expressed genes, independently of the tissue or modality of the cell. B) Shown are the attention matrices obtained from the head 3 of the Nicheformer layer 6 when processing lung spatial cells (top left), brain spatial cells (top right), liver spatial cells (bottom left) and brain dissociated cells (bottom right). It can be seen that the attention pattern of this attention head changes when processing dissociated cells or spatial cells. C) Shown are different attention matrices obtained when feeding Nicheformer with cells from the AVPV section. Different heads showcase different patterns, which reveal diverse attention behaviours, including metadata token focus (Head 5, Layer 4), selective gene interactions (Head 6, Layer 4), diffuse attention across genes (Head 10, Layer 6), strong self-attention (Head 1, Layer 6), combined self and global attention (Head 12, Layer 6), and concentrated attention on key genes (Head 3, Layer 7). D) The first layers of Nicheformer show the highest attention differences between cell and female cells, even though this is very small. E) The same pattern holds for the SDN genes. F) Nicheformer’s middle layers show the maximum attention score differences between the male and the female cells for the HY GABA cells within the AVPV section. G) The same pattern occurs when examining the maximum differences for all cells in the AVPV section. The contrast of the average attention difference plotted here and the maximum attention differences (Fig. 3d-f) suggests that the sex differences are captured by a subset of the attention heads. The average attention difference is computed averaging all attention heads, whereas the maximum attention difference attends to the maximum difference reported in any head.
