Extended Data Fig. 8: SSR-SIM imaging of VSVG and sheet-like ER interaction.

From: Bio-friendly and high-precision super-resolution imaging through self-supervised reconstruction structured illumination microscopy

Extended Data Fig. 8: SSR-SIM imaging of VSVG and sheet-like ER interaction.The alternative text for this image may have been generated using AI.

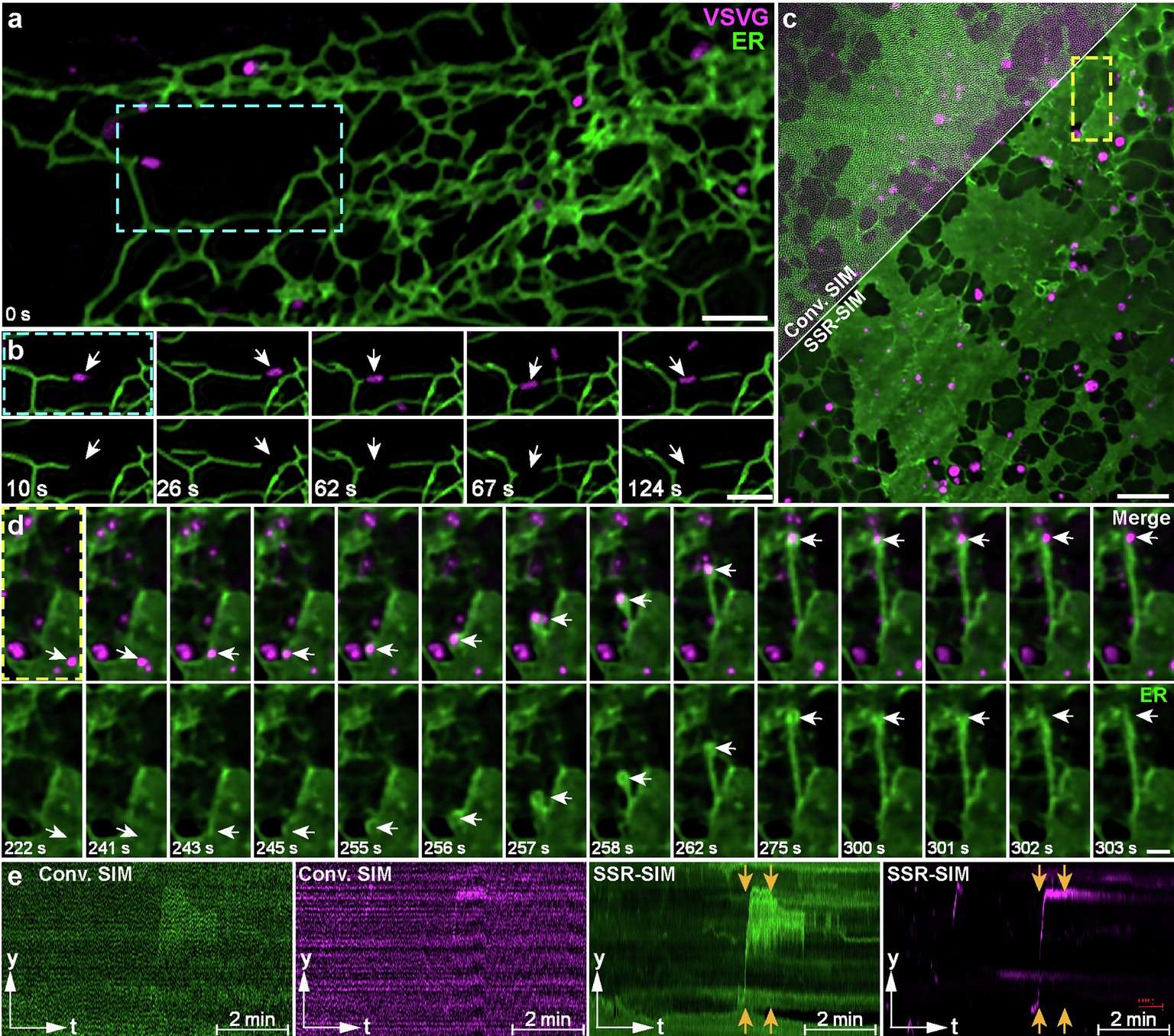

a, SSR-SIM imaging of co-movement of VSVG and ER structures. b, Time-lapse images of the dynamic events in cyan-boxed region (a). c, A separate image showing additional VSVG and ER interactions. d, Time-lapse images of the dynamic events in yellow-boxed regions (c). e, The y-t plots corresponding to the trajectories indicated in d. Orange arrows indicate the 256 s and 300 s time points in the sequence. All experiments were repeated independently for more than 3 ROIs with similar results. Gamma, 0.7 (a-e). Scale bars, 2 μm (a,b), 5 μm (c), and 1 μm (d).
