Extended Data Fig. 6: Trial-by-trial characterization of Ca2+ and NE activity in the aBLA during cued-fear conditioning.
From: Next-generation multicolor indicators for in vivo imaging of norepinephrine

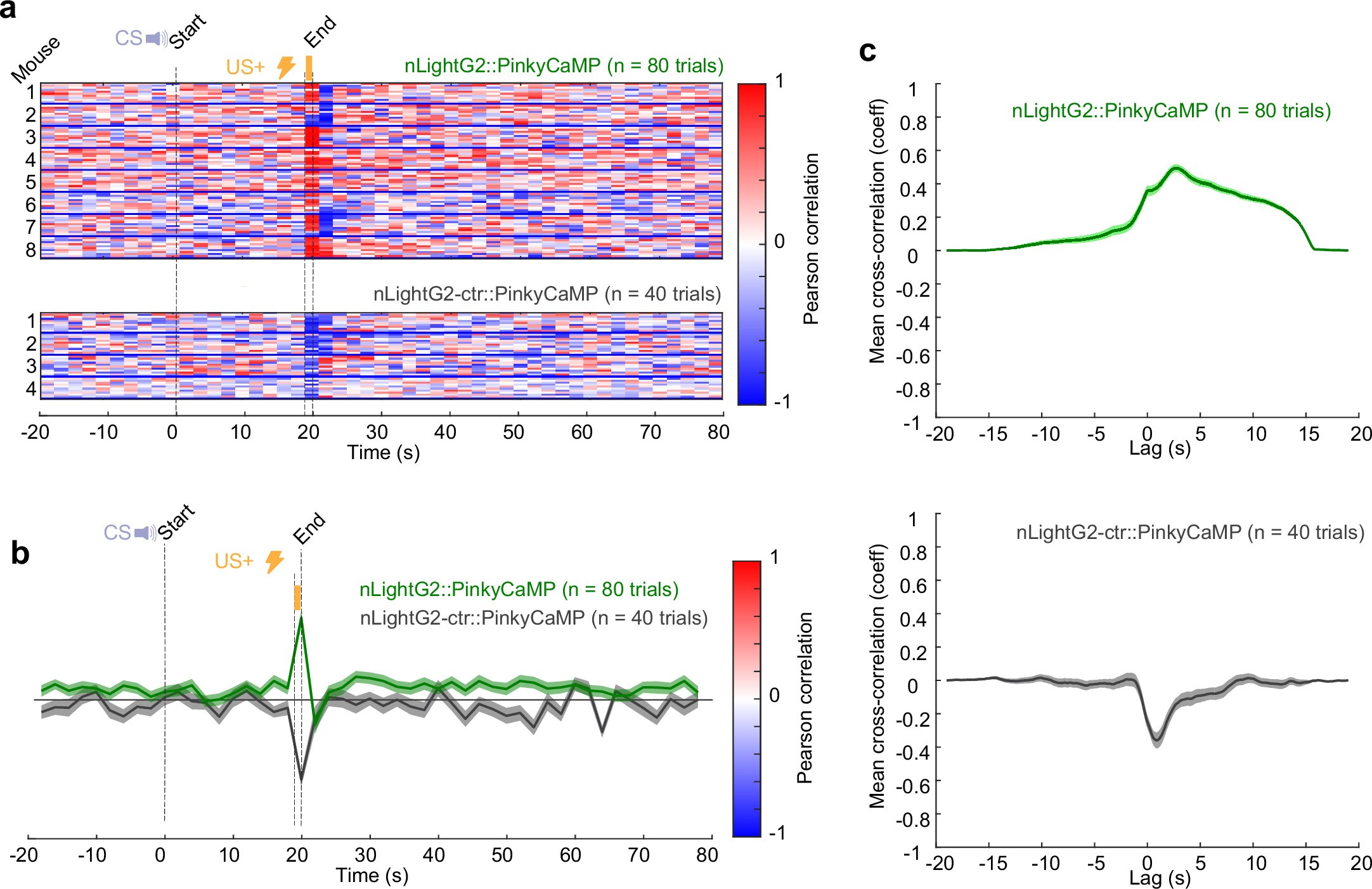

a, 100 s heatmaps during the CS-US parings. Colors represent the Pearson correlation between the PinkyCaMP and nLightG2 (top) or nLightG2-ctr (bottom) the z-Scores (2 s bin window). Each row represents a trial (10x CS-US parings / session), and each block represents a different mouse. b, Pearson correlation mean across all the trials (nLightG2::PinkyCaMP, n = 80 trials, nLightG2-ctr::PinkyCaMP, n = 40 trials). c, Cross-correlation around the US presentation of LightG2::PinkyCaMP (top) and nLightG2-ctr::PinkyCaMP (bottom). Solid lines represent the mean +/- SEM (shading).
