Extended Data Fig. 7: Activation of putative inhibitory neurons in individual mice.
From: Neuropixels Opto: combining high-resolution electrophysiology and optogenetics

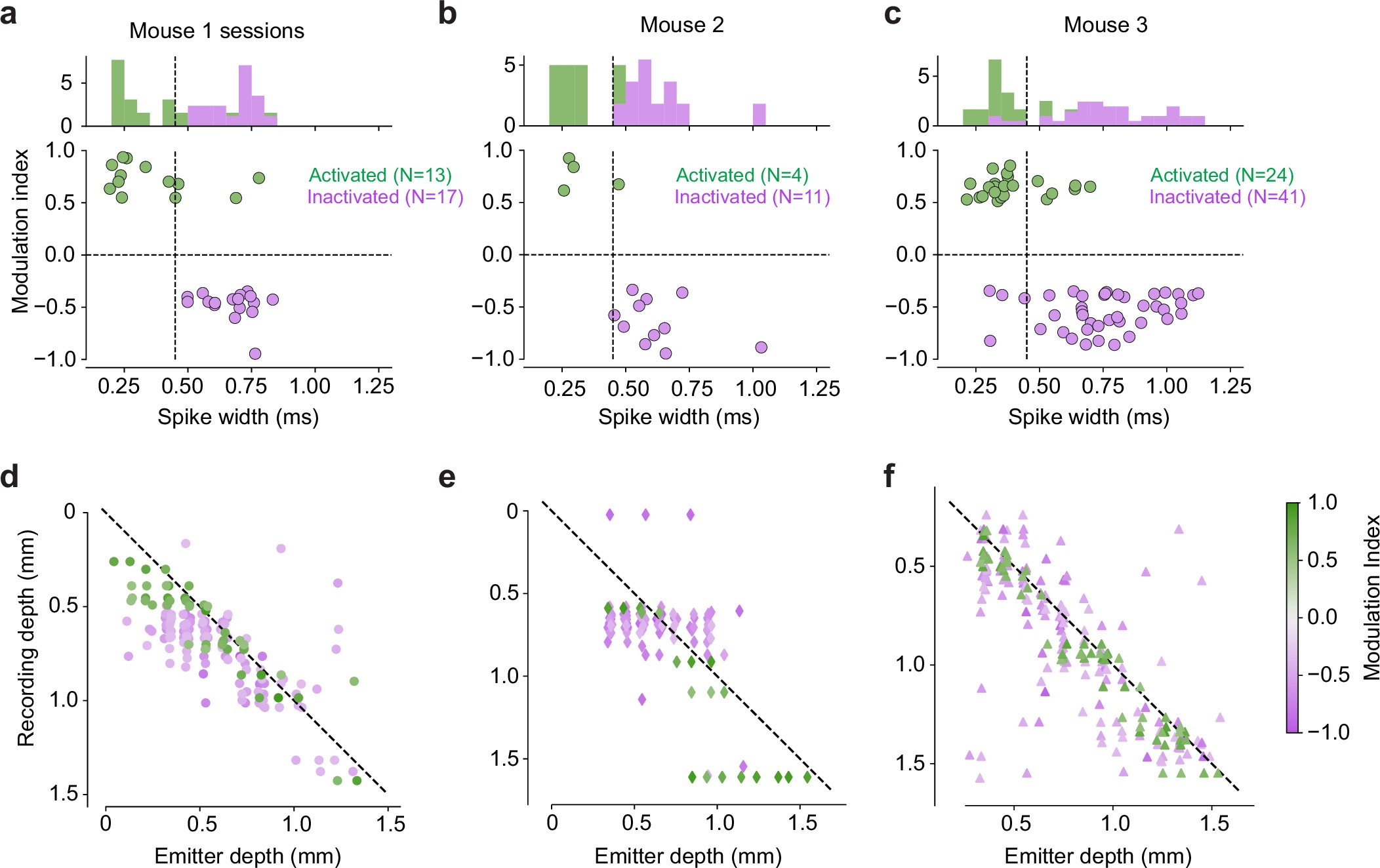

a-c. Same data as in Fig. 4e, broken down by mouse, showing modulation index (R1-R0)/(R1 + R0) (ordinate) as a function of trough-to-peak spike width of average waveforms. d-f. Same data as in Fig. 4g, broken down by mouse. Each panel shows the recording depth of the neurons as a function of the depth of the effective emitters. Colors indicate modulation index. Each neuron appears at one recording depth and at one or more emitter depths (if modulated by light from multiple emitters).
