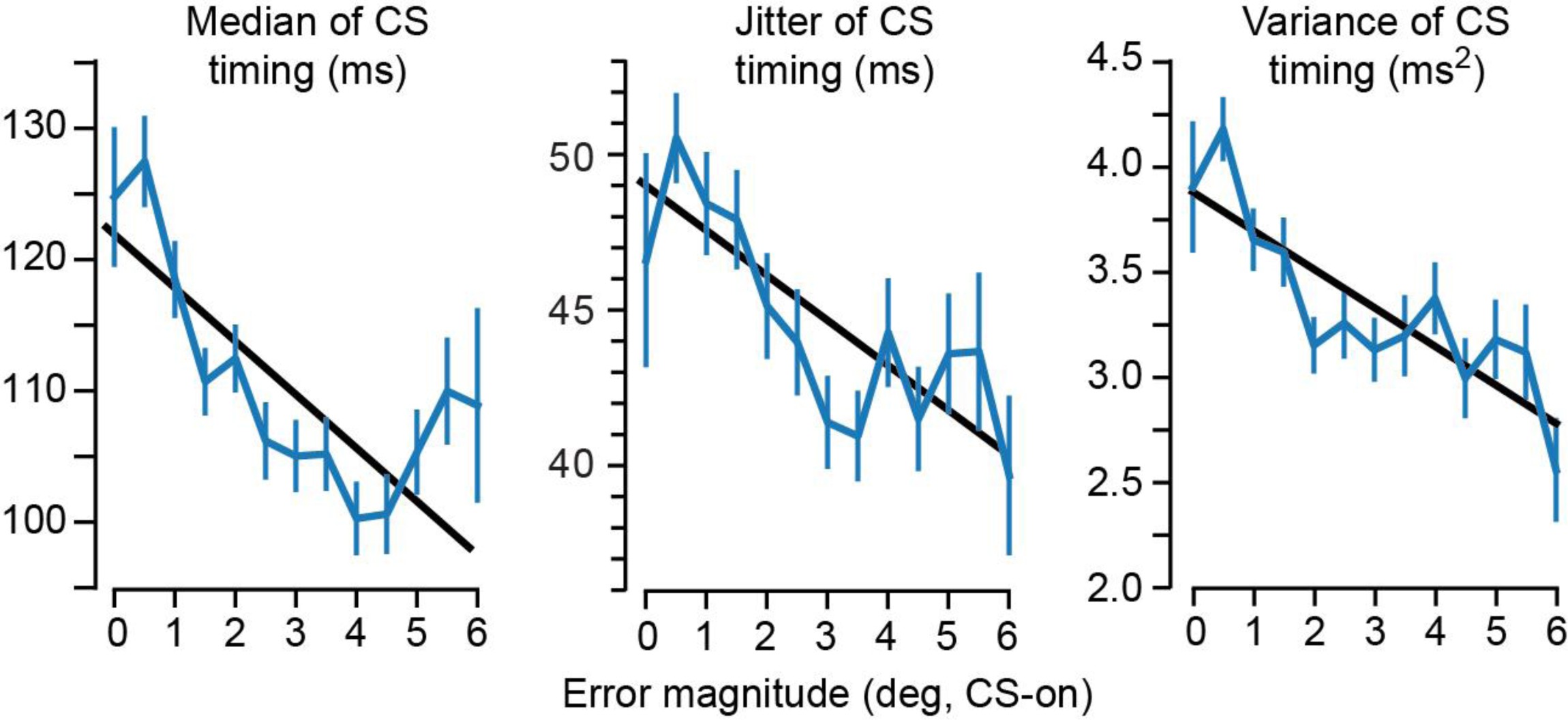

Supplementary Figure 2: Increasing error magnitude modulates CS timing.
From: Encoding of error and learning to correct that error by the Purkinje cells of the cerebellum
The median time of complex spikes in the 250 ms period following saccade termination decreased with error magnitude (left) as the distribution in Fig. 1e changed from uniform to unimodal. In addition, CS timing became more precise, resulting in decreased jitter (median absolute deviation from the median, center) and decreased variance (right). Error bars are SEM across neurons.
