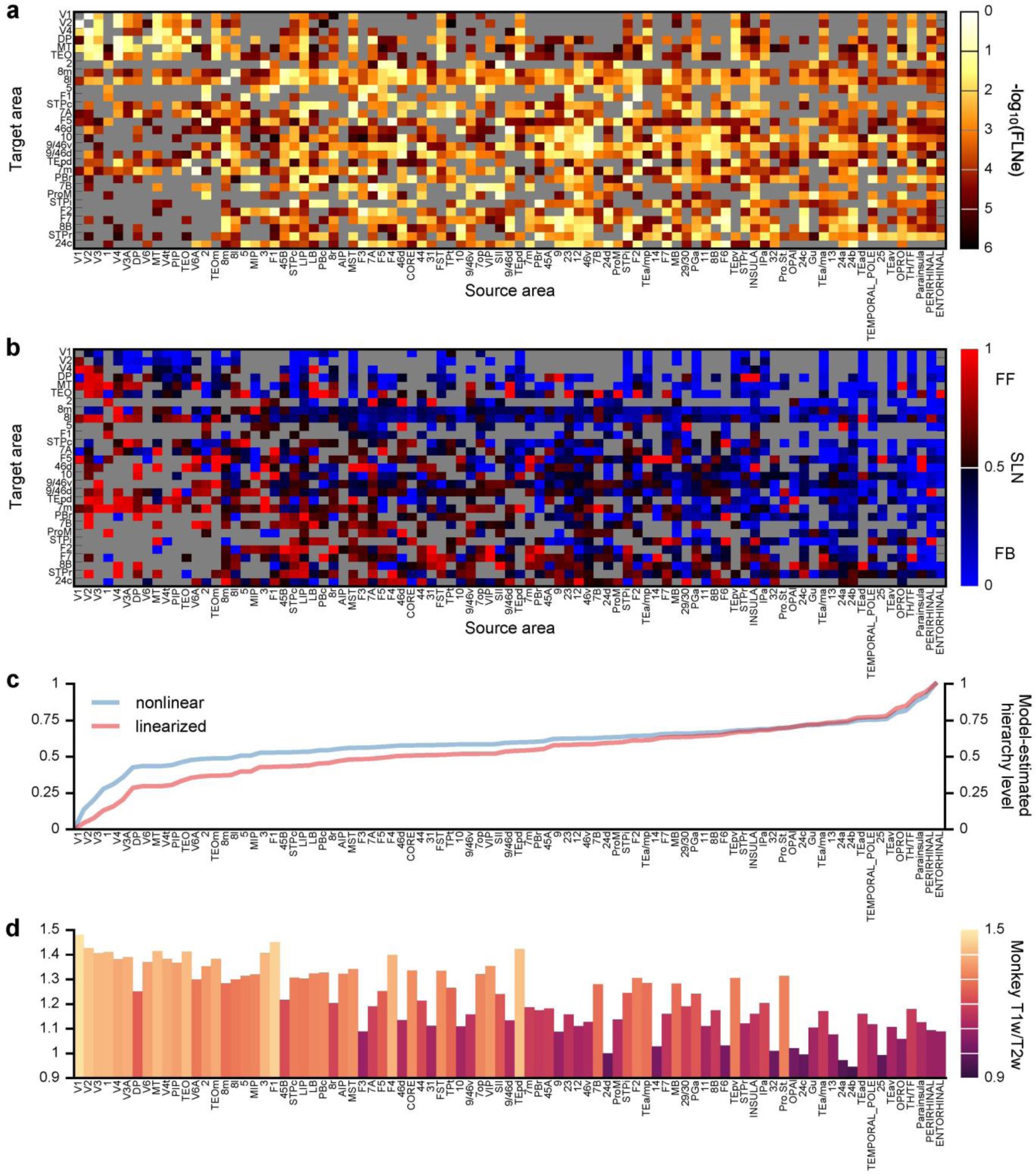

Supplementary Figure 2: Anatomical cortical hierarchy derived from N = 1,243 laminar-specific interareal projections in monkey cortex.
