Supplementary Figure 5: Expression maps and TMCs for genes encoding synaptic receptor subunits and neuromodulator receptor subunits.

From: Hierarchy of transcriptomic specialization across human cortex captured by structural neuroimaging topography

Supplementary Figure 5

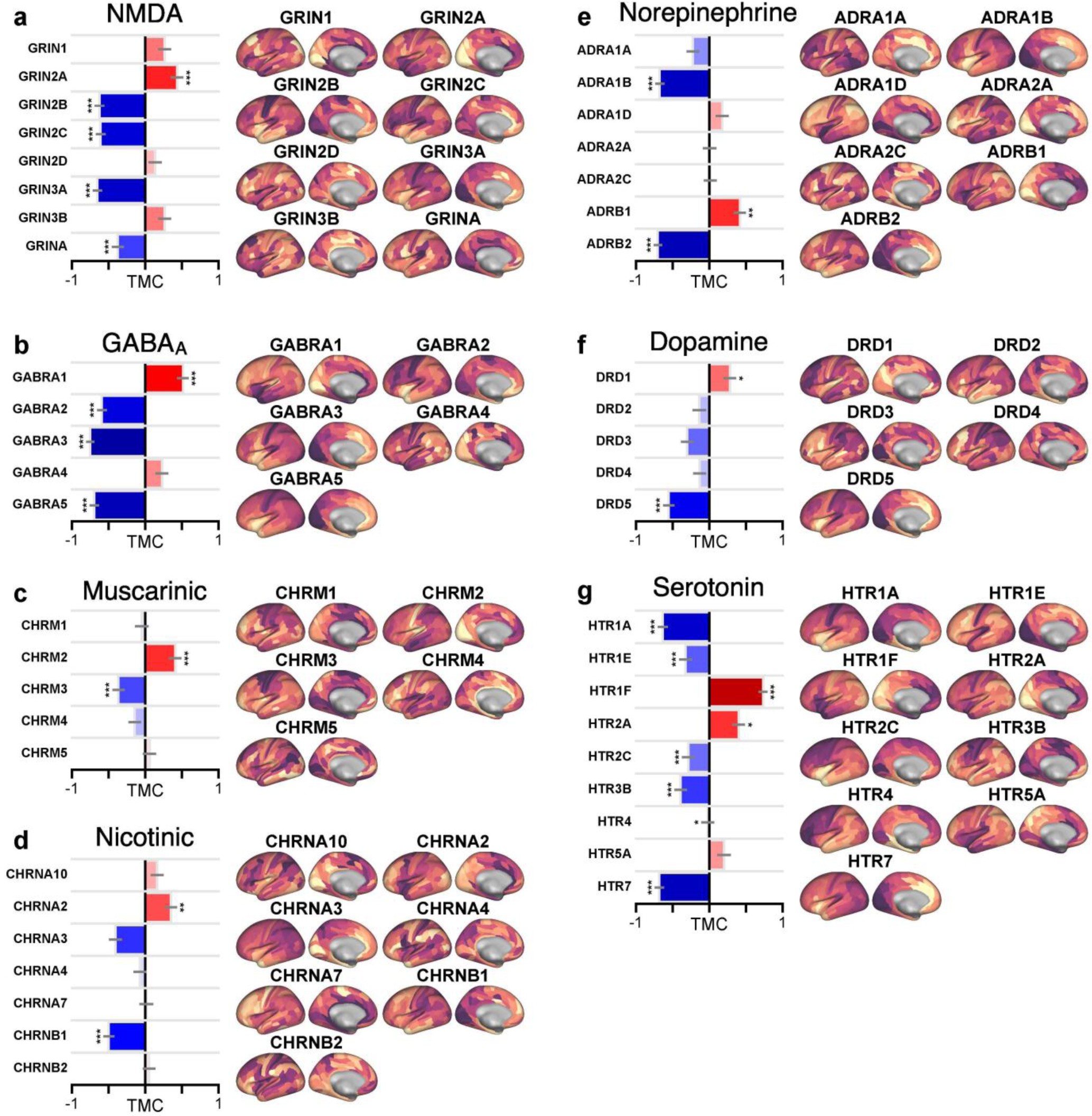

(a) NMDA receptor subunits. (b) GABAA receptor subunits. (c) Muscarinic acetylcholine receptors (CHRM). (d) Nicotinic acetylcholine receptors (CHRN). (e) Norepinephrine receptors (ADR). (f) Dopamine receptors (DRD). (g) Serotonin receptors (HTR). Expression map values are standardized (i.e., z-scored) and shown in units of standard deviations from the mean. All maps use the same colormap and scale as Fig. 1a. Statistical significance is calculated using a spatial autoregressive model to account for spatial autocorrelation, Bonferroni-corrected by the number of genes in each set (*, P < 0.05; **, P < 10−2; ***, P < 10−3). Grey lines mark the jackknife estimate of standard error.
