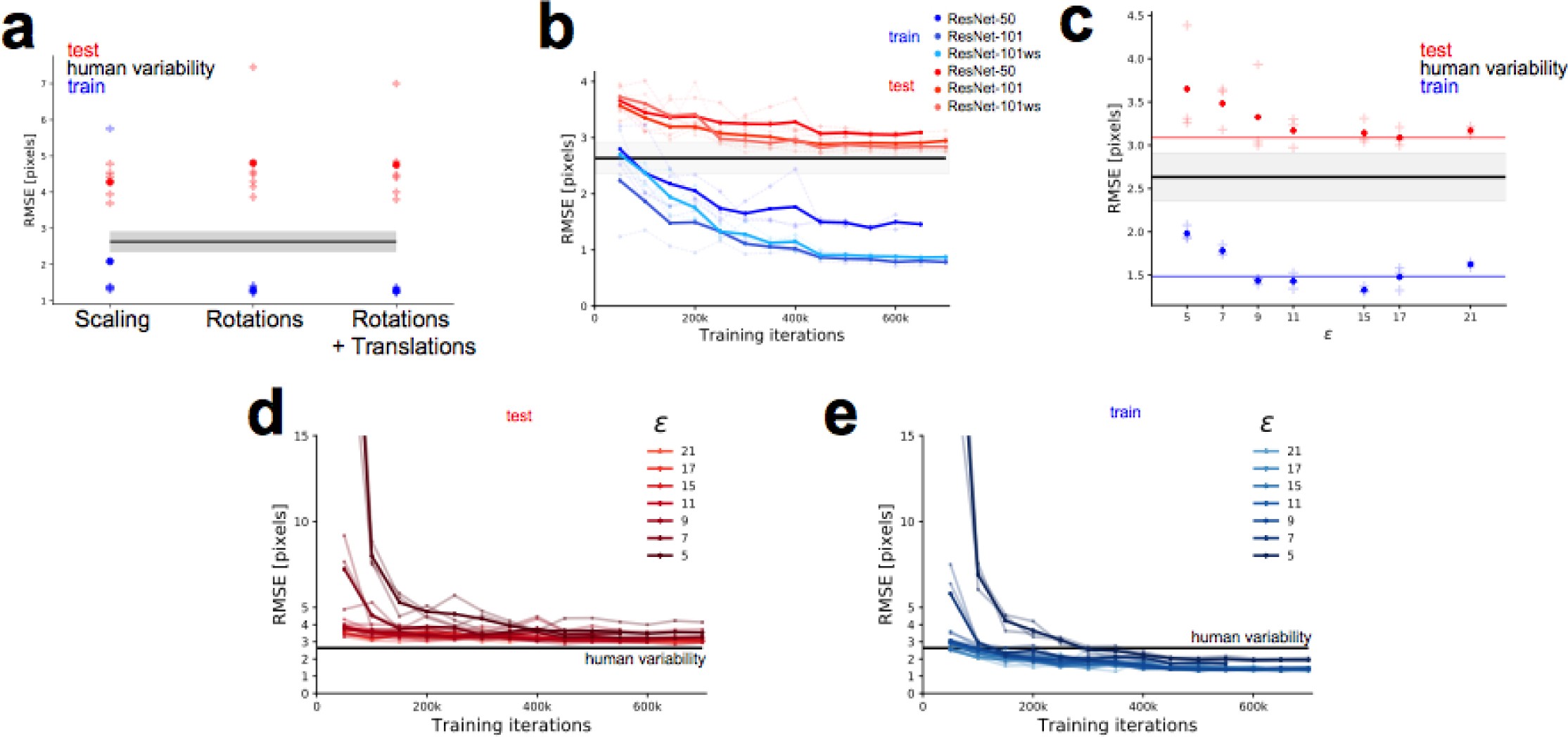

Supplementary Figure 2: Cross-validating model parameters and testing deeper networks.

a: Average training and test error for the same 6 splits with 10% training set size as in Fig. 2f with standard augmentation (i.e. scaling), augmentation by rotations as well as rotations and translations (see Methods). Although with augmentation there are 8 and 24 times as many training samples (rotations and rotations + translations, respectively), the training and test errors remained comparable. b: Average training and test error for the same 3 splits with 50% training set size for three different architectures: ResNet-50, ResNet-101 as well as ResNet-101ws, where part loss layers are added to conv4 bank²⁹. For these networks the training error is strongly reduced, and the test performance modestly improved, indicating that the deeper networks do not over-fit (but do not offer radical improvement). Averaged over 3 splits, individual simulation results shown in as faint lines. The deeper networks reach human level accuracy on test set. The data for ResNet-50 is also depicted in Fig. 2d. c: Cross validating model parameters for ResNet-50 and 50%-training set fraction. We varied the distance variable ϵ, which determines the width of the score-map template during training around the ground-truth value with scale variable 100% (otherwise the scale ratio of the output layer was set to 80% relative to the input image size). Varying distance parameters only mildly improves the test performance (after 500k training steps). The average performance for scale 0.8 and ϵ=17 is indicated by horizontal lines (from Fig. 2d). In particular, for smaller distance parameters the RMSE increases and learning proceeds much slower (c,d). d-e: Evolution of the training and test errors at various states of the network training for various distance variables ϵ corresponding to c.
