Supplementary Figure 14: Immunoblots representing the distribution of TDP-43, pTDP-43, FUS, SOD1, and hnRNPA1 on velocity sedimentation gradients.

From: TDP-43 extracted from frontotemporal lobar degeneration subject brains displays distinct aggregate assemblies and neurotoxic effects reflecting disease progression rates

Supplementary Figure 14: Immunoblots representing the distribution of TDP-43, pTDP-43, FUS, SOD1, and hnRNPA1 on velocity sedimentation gradients.

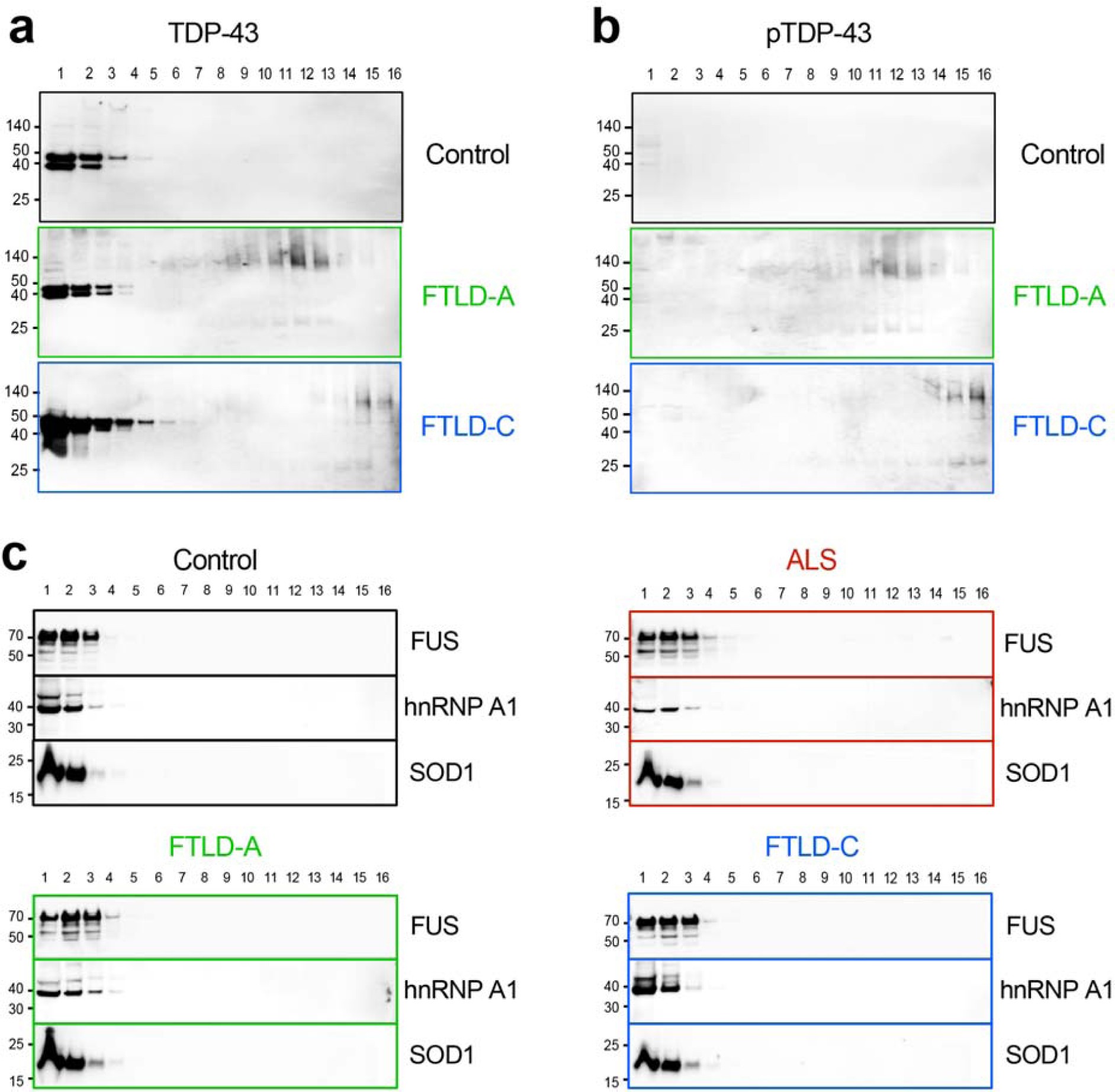

a-b. Representative immunoblots of the velocity sedimentation profiles of TDP-43 (a) and pTDP-43 (b). SarkoSpin solubilized brain homogenates from frontal and motor cortex of control (black), FTLD-TDP-A (green), and FTLD-TDP-C (blue), were fractionated by velocity and the collected fractions (numbered from top to bottom of the gradient) were analyzed for TDP-43 (a) and pTDP-43 (b) by western blotting. These experiments were repeated three independent times with similar results. c. Representative immunoblots of the distribution of FUS, hnRNPA1 and SOD1 on velocity sedimentation gradients. SarkoSpin-solubilized brain homogenates from frontal and motor cortex of control (black), ALS (red), FTLD-TDP-A (green), and FTLD-TDP-C (blue) were fractionated by velocity and the collected fractions (numbered from top to bottom of the gradient) were analyzed for FUS (top), hnRNPA1 (middle) and SOD1 (bottom) content by western blotting. These experiments were repeated four independent times with similar results.
