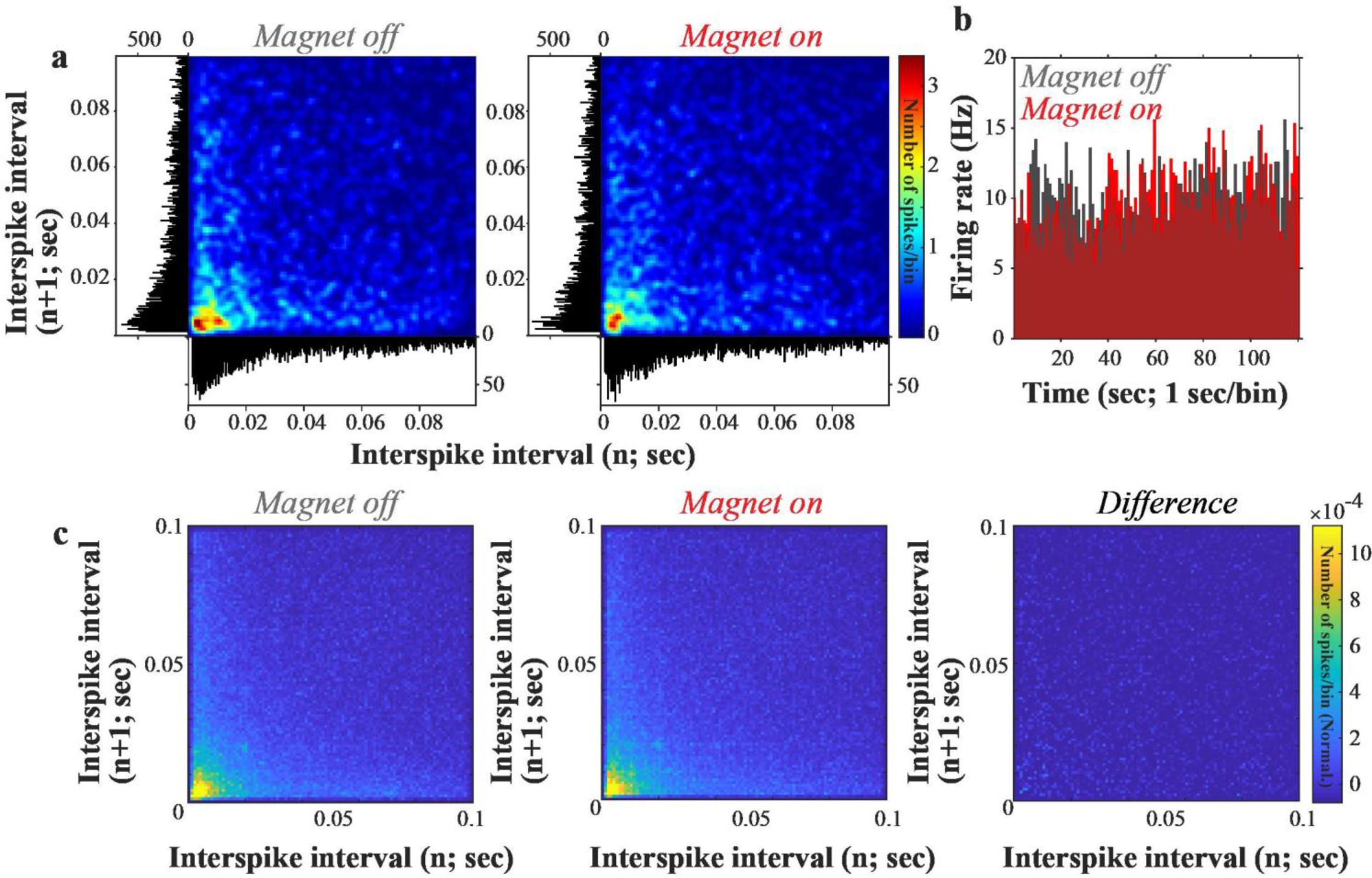

Supplementary Figure 6: Spiking pattern does not change during magnetic stimulation in vivo.
From: Assessing the utility of Magneto to control neuronal excitability in the somatosensory cortex
(a) Poincaré plot of interspike intervals (ISI) from a representative neuron under control conditions (magnet off) and during magnetic stimulation (magnet on). Corresponding ISI histograms (bin size = 0.5 ms) are shown on the left and bottom of each plot. (b) Post-stimulus time histograms of a representative neuron for the magnet on and off conditions. (c) Mean normalized ISI Poincaré plot across all neurons (N = 235). Neurons that fired <50 spikes during the period of observation were excluded from the plot (N = 118).
