Supplementary Figure 12: LTD induction in vCA1-AcbC engram projection does not affect locomotion.

From: A ventral CA1 to nucleus accumbens core engram circuit mediates conditioned place preference for cocaine

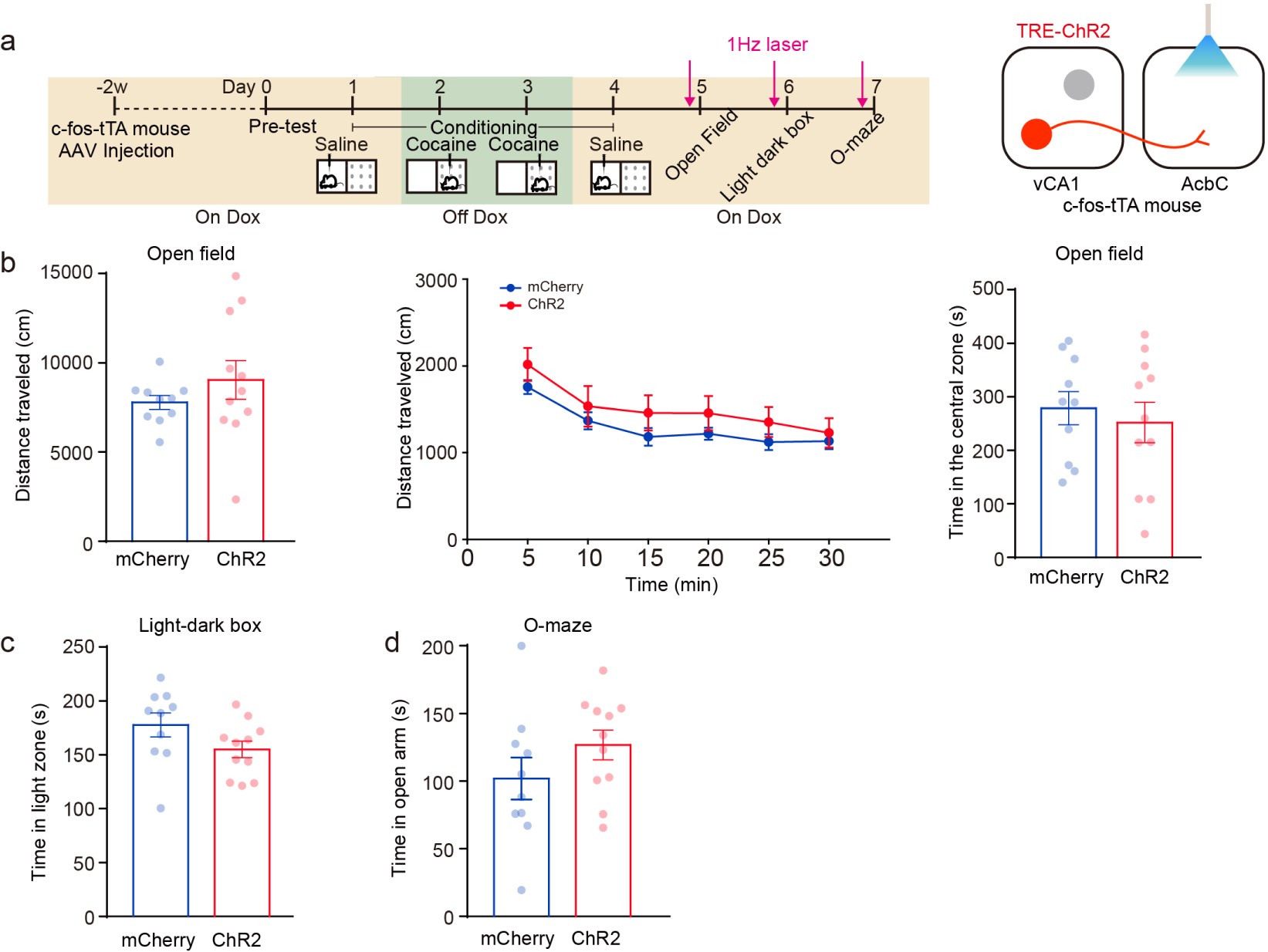

Supplementary Figure 12

(a-d) AAV TRE-ChR2-mCherry was infused into the vCA1 of c-fos-tTA mice 2 weeks before behavioral experiments. No-Dox diet was provided during cocaine-paired conditioning. On days 5–7, Open-field, light/dark box, and elevated O maze tasks were performed, and in vivo photostimulation (LFS: 473 nm laser, 4 ms pulse width, 1 Hz, 10 min) in the AcbC was given 40 min before each task. (a) Experiment scheme and schematic of photostimulation. (b) Open-field test. (c) Light/dark box task. (d) O-maze task. [mCherry: n = 10, ChR2-mCherry: n = 11. b, Left, Kruskal-Wallis One Way Analysis of Variance on ranks, H = 0.600 with 1 degrees of freedom, p = 0.439; b, Middle, Friedman’s two way RM ANOVA by ranks, F (5, 95) = 0.75, p = 0.588; b, Right, One way ANOVA, F (1, 19) = 0.295, p = 0.594. c, One way ANOVA, F (1, 19) = 2.923, p = 0.104. d, One way ANOVA, F (1, 19) = 1.750, p = 0.202]. Bar graphs show mean ± s.e.m. and individual data (circles).
