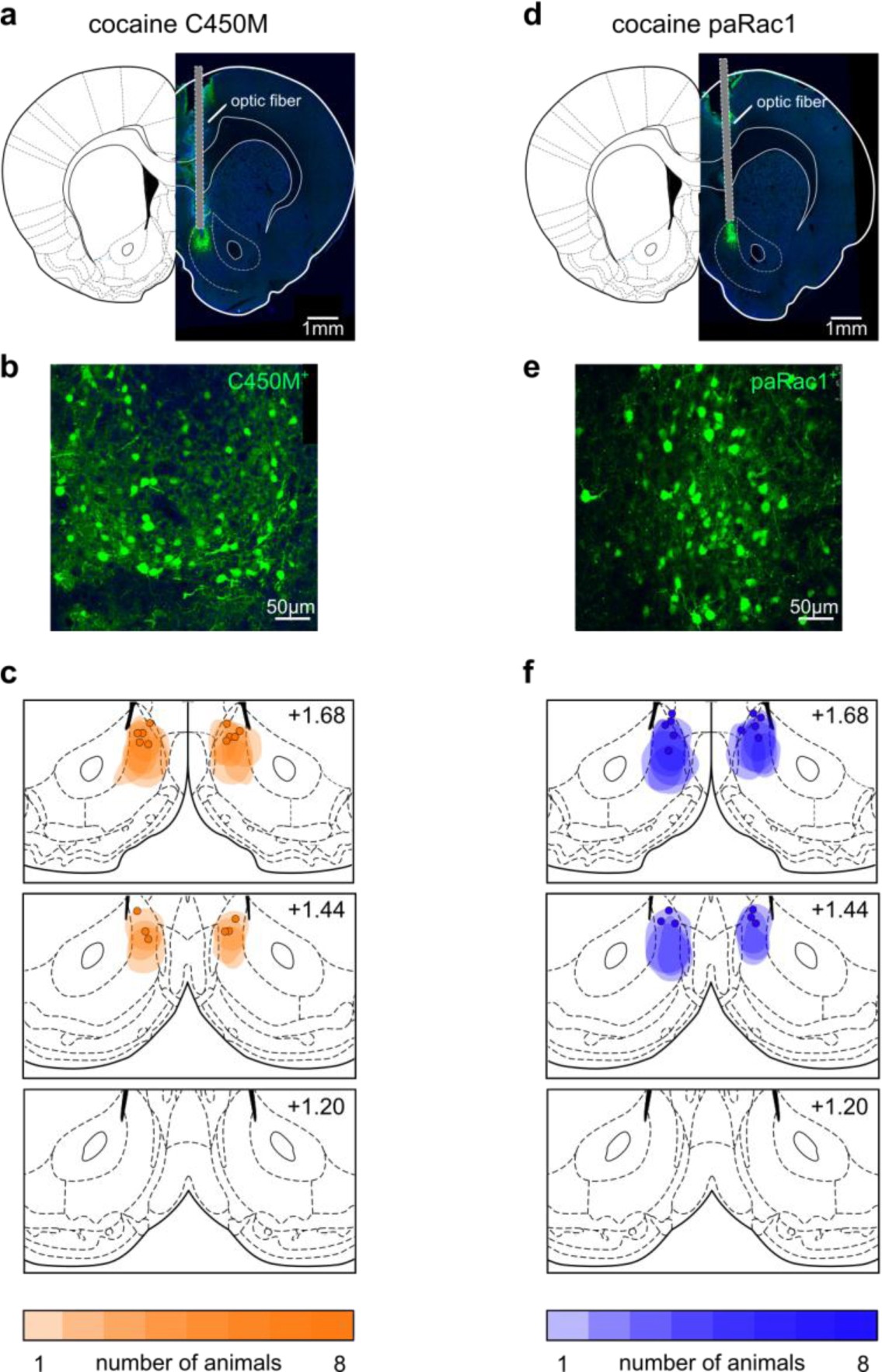

Supplementary Fig. 13: Viral localization and expression for photostimulation in long-term memory experiments.
From: Silent synapses dictate cocaine memory destabilization and reconsolidation
(a-c) Example image showing HSV-mediated expression of C450M in the NAcSh and location of the optical fiber that delivered laser stimulation (a), and a magnified portion of the image showing viral expression in individual neurons (b) from a cocaine-trained rats used in behavioral experiments presented in Fig. 6s. Viral expression and fiber tip localization for all rats that were included in data analysis are presented in (c). (d-f) Example image showing HSV-mediated expression of paRac1 in the NAcSh and location of the optical fiber that delivered laser stimulation (d), and a magnified portion of the image showing viral expression in individual neurons (e) from a cocaine-trained rat used in behavioral experiments presented in Fig. 6s. Viral expression and fiber tip localizations for all rats that were included in data analysis are presented in (f).
