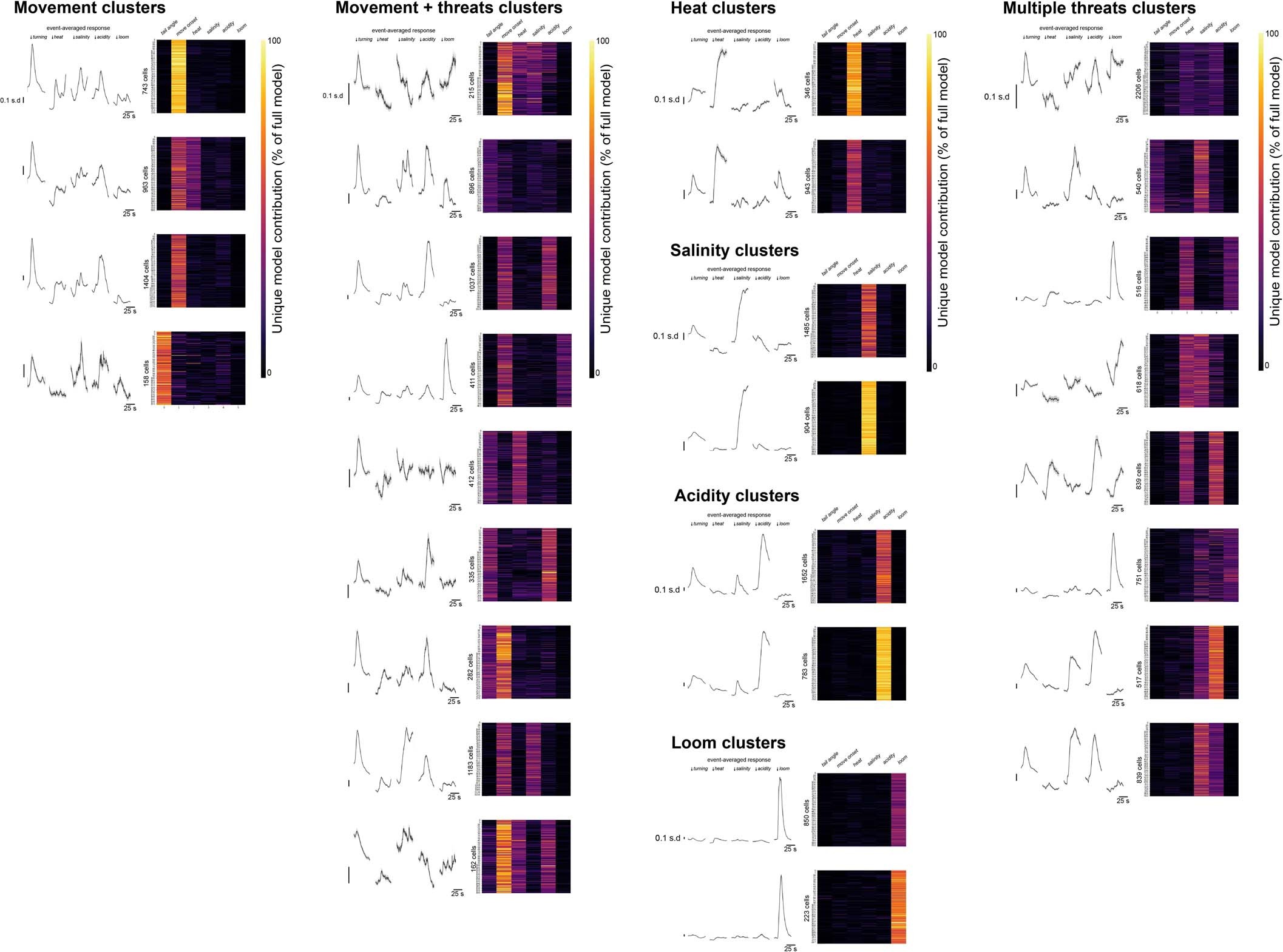

Extended Data Fig. 6: Functional clusters of hypothalamic neurons.
From: Multiple convergent hypothalamus–brainstem circuits drive defensive behavior
Stimulus-aligned activity averaged across all recorded neurons and trials, and unique model contribution (UMC) values, for all functional clusters identified in Fig. 3c. These plots include all recorded neurons in Tg(elavl3:H2B-GCaMP6s) fish, rather than just the identified peptidergic neurons.
