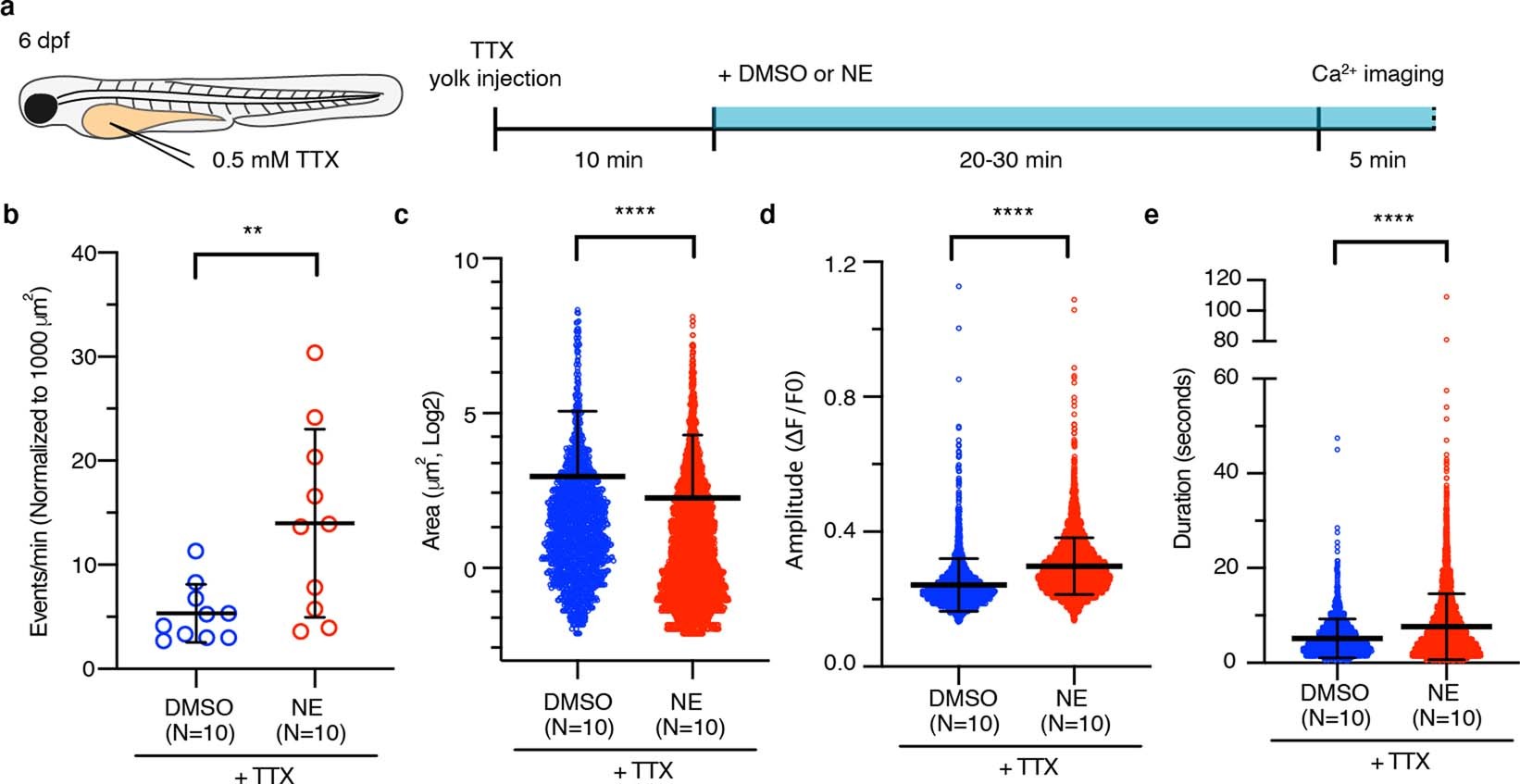

Extended Data Fig. 4: NE-induced Microdomain Ca2+ transients in spinal cord astrocytes are not driven by neuronal activity.
From: Live-imaging of astrocyte morphogenesis and function in zebrafish neural circuits
a, Schematic overview of the TTX injection experiments. b-e, Comparisons of average microdomain Ca2+ events frequencies (b), area sizes (c), amplitudes (d), and durations (e) in DMSO control and NE-treated fish following TTX injections. Error bars represent Mean values +/- SD. **, p<0.01; ****, p<0.0001. p=0.0094 (b), p=1.07x10−7 (c), p<1.0x10−15 (d and e). Two-tailed unpaired t test. N, number of fish analyzed.
