Extended Data Fig. 4: SV-xQTL top hits. | Nature Neuroscience

Extended Data Fig. 4: SV-xQTL top hits.

From: Integrating whole-genome sequencing with multi-omic data reveals the impact of structural variants on gene regulation in the human brain

Extended Data Fig. 4

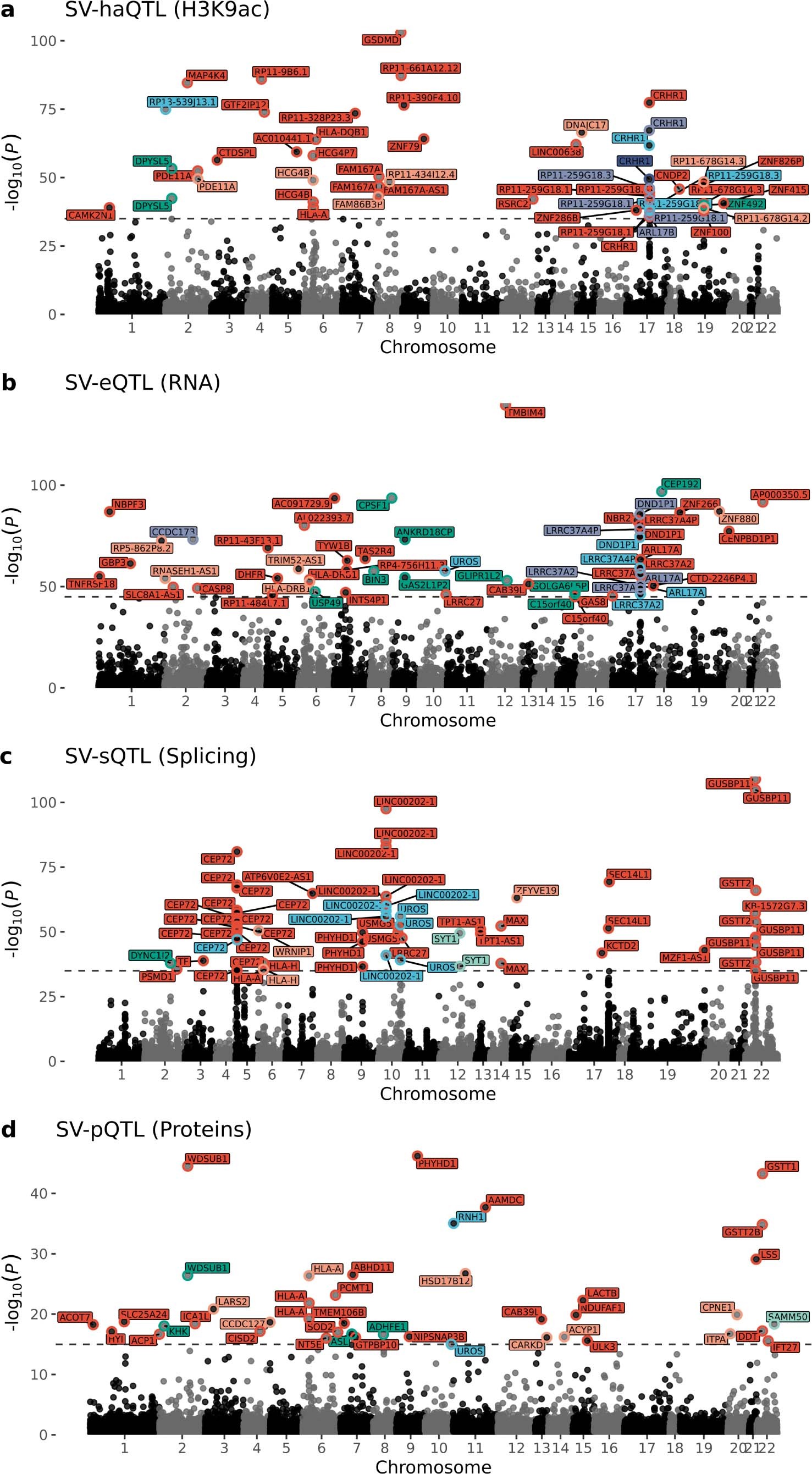

Manhattan plots showing the top SV-xQTLs measured in ROS/MAP. Colored labels represent each SV class. a, SV-haQTL (H3K9ac), showing labels for associations with -log10(P-value)>30. b, SV-eQTL, labels for associations with -log10(P-value)>40. c, SV-sQTL, labels for associations with -log10(P-value)>40. d, SV-pQTL, labels for associations with -log10(P-value)>10.
