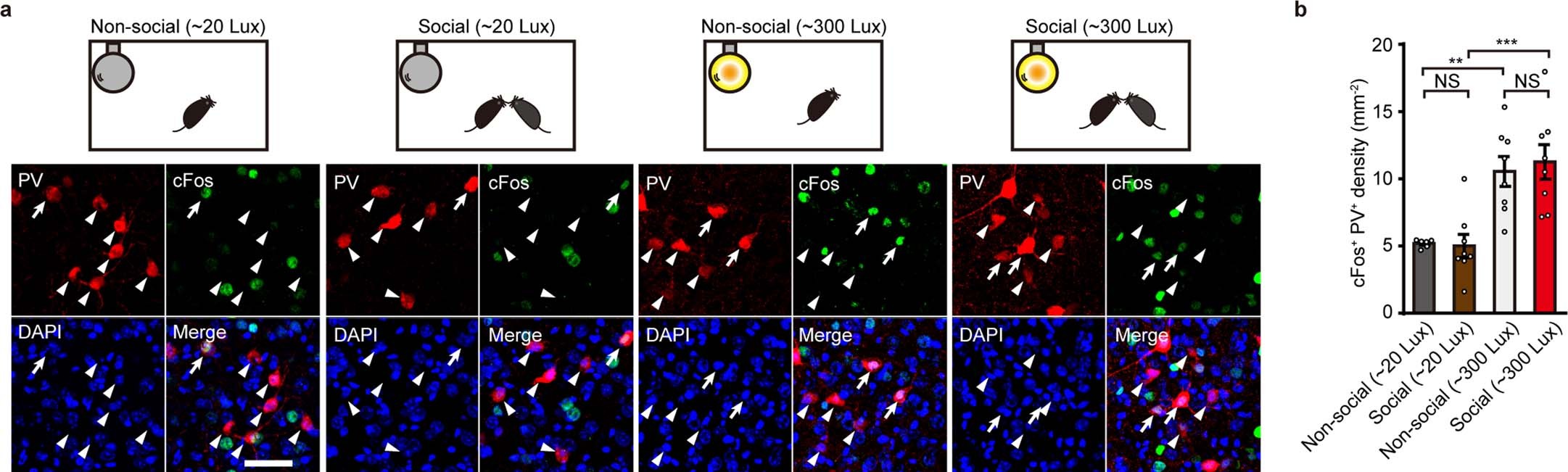

Extended Data Fig. 6: BAPV Neurons are Activated under Anxiogenic but not Social Stimulus.
From: Distinct serotonergic pathways to the amygdala underlie separate behavioral features of anxiety
Schematics of anxiogenic and social stimuli (a, top), representative images (a, bottom) and statistics (b, mean ± SEM; n = 6, 8, 8 and 8 mice; F(3, 26) = 10.84, P < 0.0001; two-sided RM one-way ANOVA; Non-social, 20 versus 300 Lux, t(26) = 3.543, **P = 0.0046; Social, 20 Lux versus 300 Lux, t(26) = 4.468, ***P = 0.0008) of cFos expression in BAPV neurons, arrows: co-expression of cFos and PV, triangles: non-cFos expression in BAPV neurons, scale bar: 50 μm.
