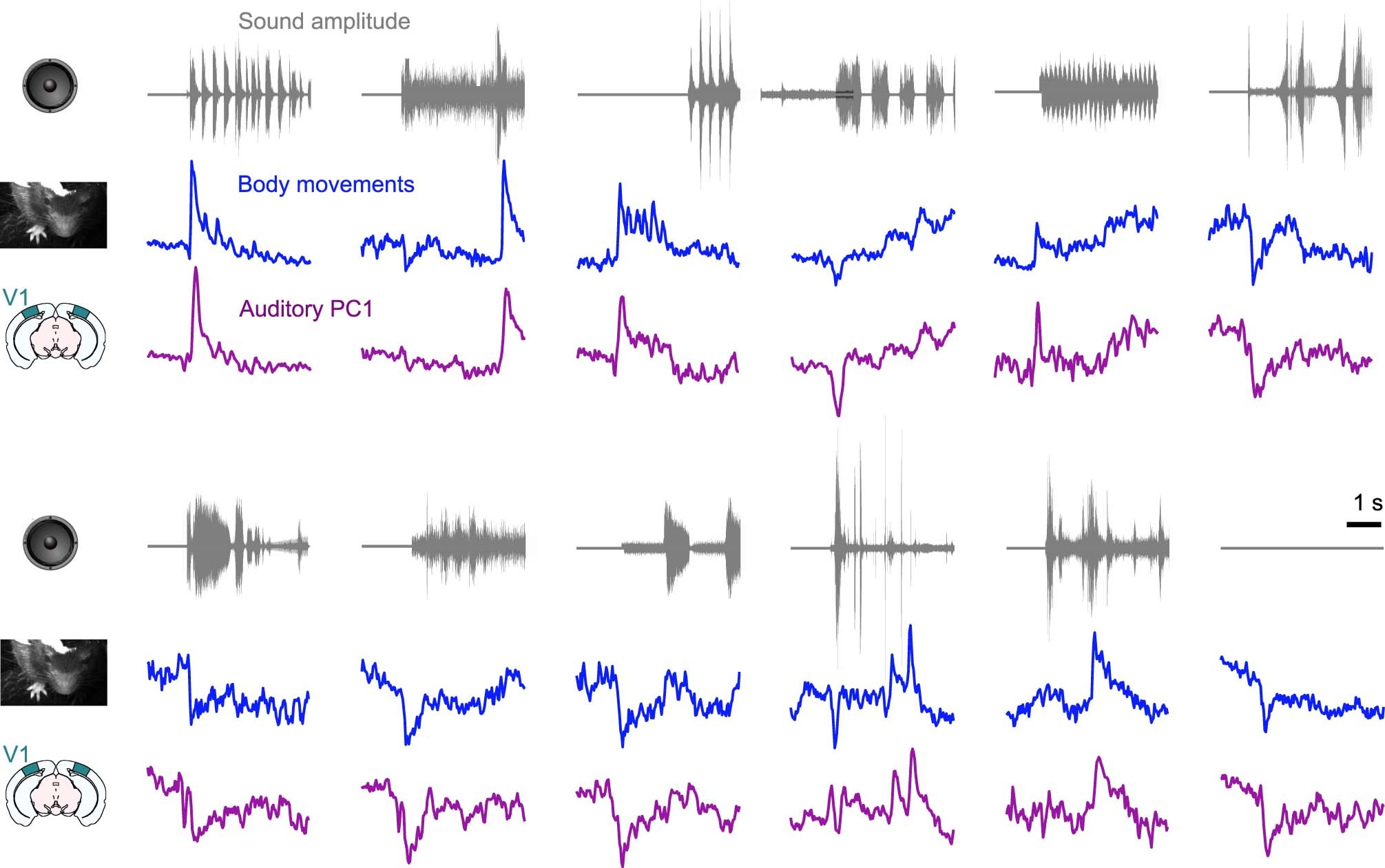

Extended Data Fig. 4: Neural and behavioral responses differ across sounds but resemble each other.
From: Behavioral origin of sound-evoked activity in mouse visual cortex
Responses along neural auditory PC1 from V1 (purple), and motion energy (blue) for all sounds. Responses are averaged over repeats, videos, and mice, and z-scored. The top trace (gray) shows the envelope of the corresponding sound. As in all main text figures, these responses are expressed relative to the grand average over sounds and videos; this explains the negative deflections seen in the responses to the blank stimulus.
