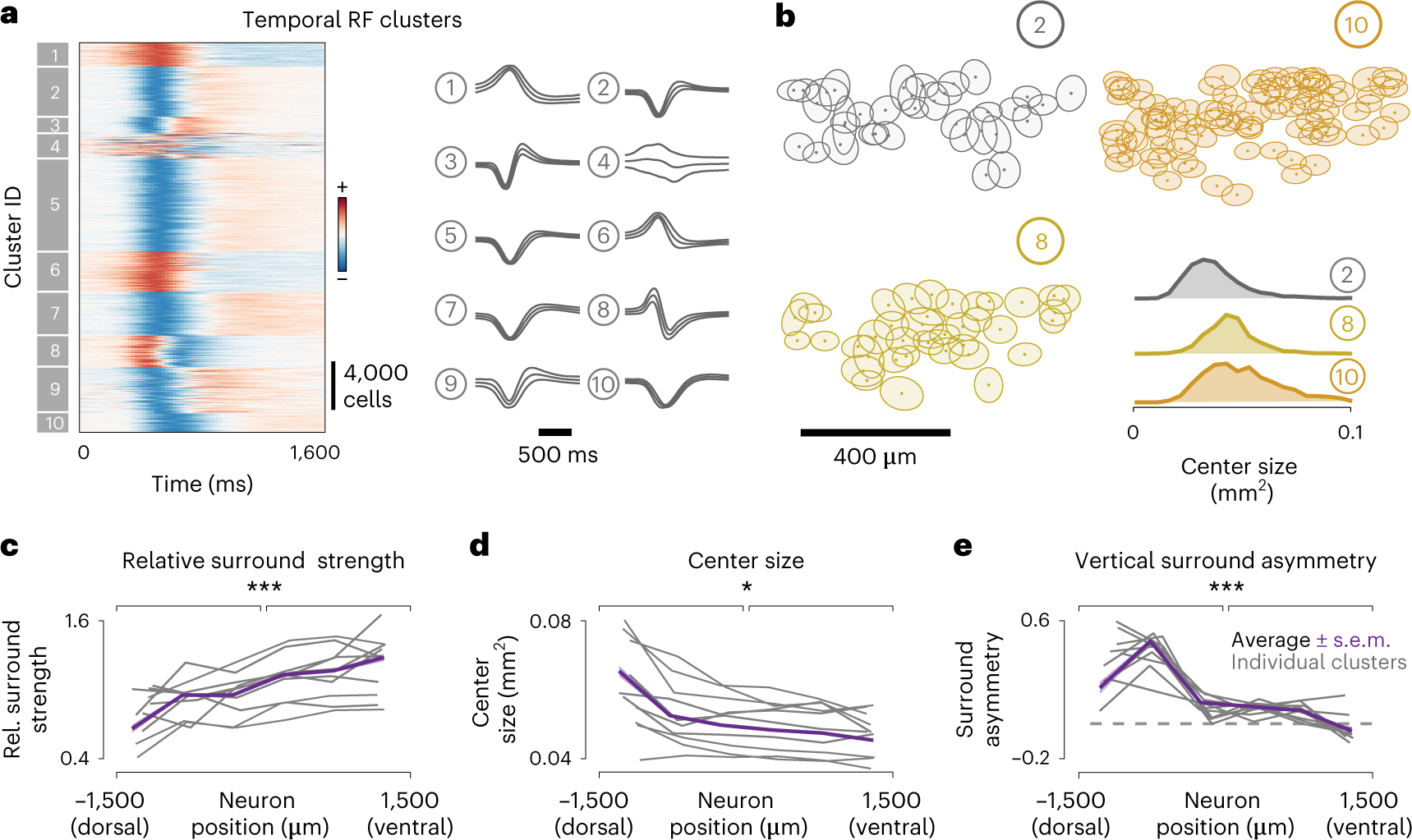

Fig. 4: Global adaptation across retinal pathways.
From: Panoramic visual statistics shape retina-wide organization of receptive fields
a, Left, temporal RFs of 31,135 RGCs, grouped by cluster membership. Right, mean and s.d. of temporal RFs in each cluster. b, Locations of RGCs (dots) and their RF centers (filled ellipses—1 s.d. of the center Gaussian) belonging to three different clusters in a small region of one retina. Bottom right, distribution of center sizes for these three clusters. c–e, Trends for relative surround strength (c), center size (d) and vertical surround asymmetry (e) for cells within each cluster (gray) and pooled from all clusters (color), binned as in Fig. 3e. (P values for two-sided Kolmogorov–Smirnov test: 6.17 × 10−5 (c), 0.02 (d) and 2.62 × 10−7 (e).
