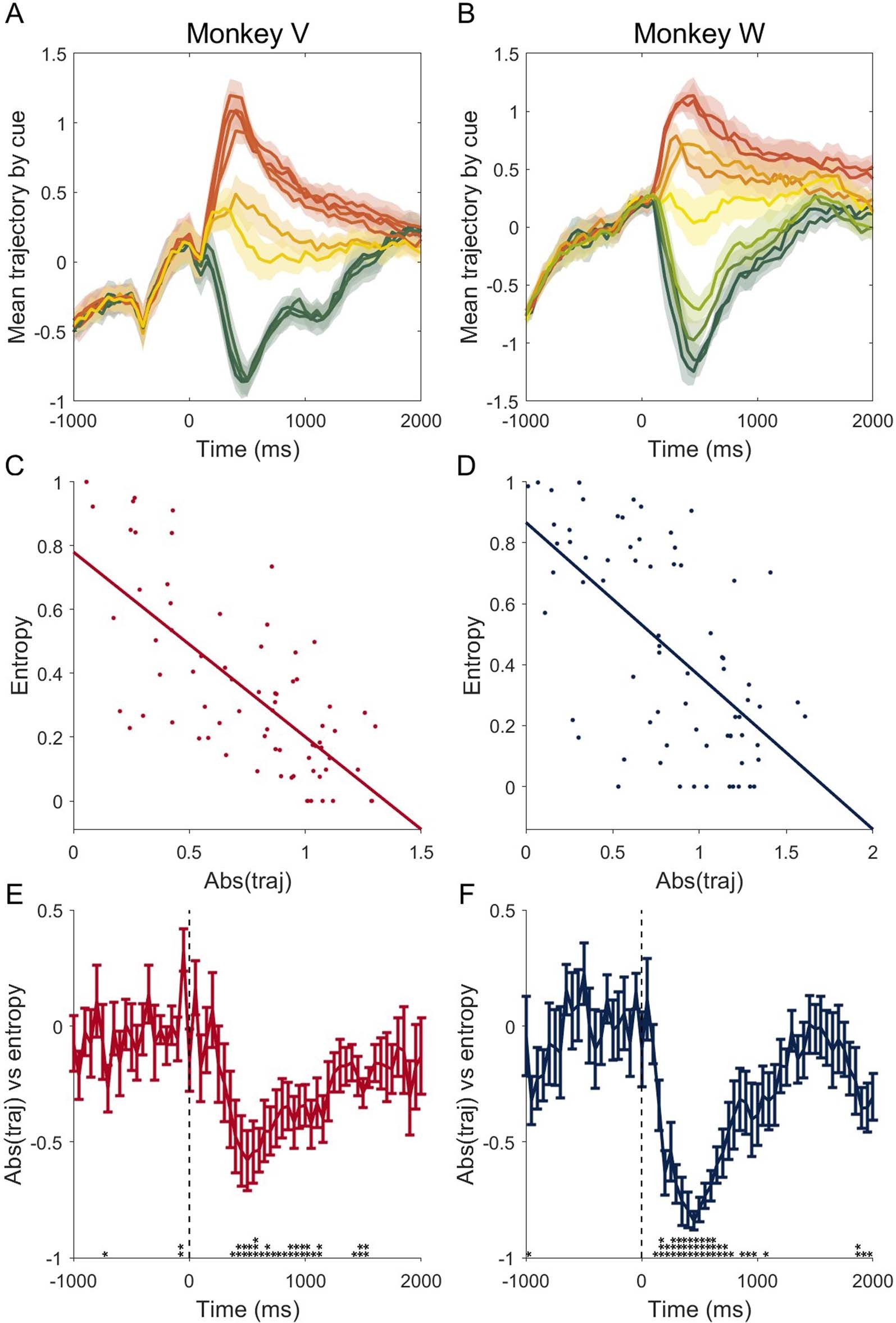

Extended Data Fig. 2: Position of mean activity in 1-D choice dimension for each cue.
From: Attractor dynamics reflect decision confidence in macaque prefrontal cortex
a-b. Position in 1-D choice dimension vs. time for each cue for monkey V (panel a) and monkey W (panel b). Data are presented as mean values ± SEM. The colors reflect p(accept), red reflects cues signaling offers that monkeys mostly accept, green reflects cues signaling offers that monkeys mostly reject, and yellow reflects cues signaling offers that monkeys have intermediate probabilities of accepting. c-d. Correlation of position of mean trajectory at the mean reaction time and entropy for accept and reject decisions for monkey V (panel c) and monkey W (panel d). For monkey V, r = −0.72, p < 0.001; for monkey W, r = −0.62, p < 0.001. e-f. Significance of correlation of entropy and position of mean activity over time for monkey V (panel e) and for monkey W (panel f). A two-tailed one-sample t-test was performed at each time bin, uncorrected for multiple comparison. N = 8 for each animal. Data are presented as mean values ± SEM.
