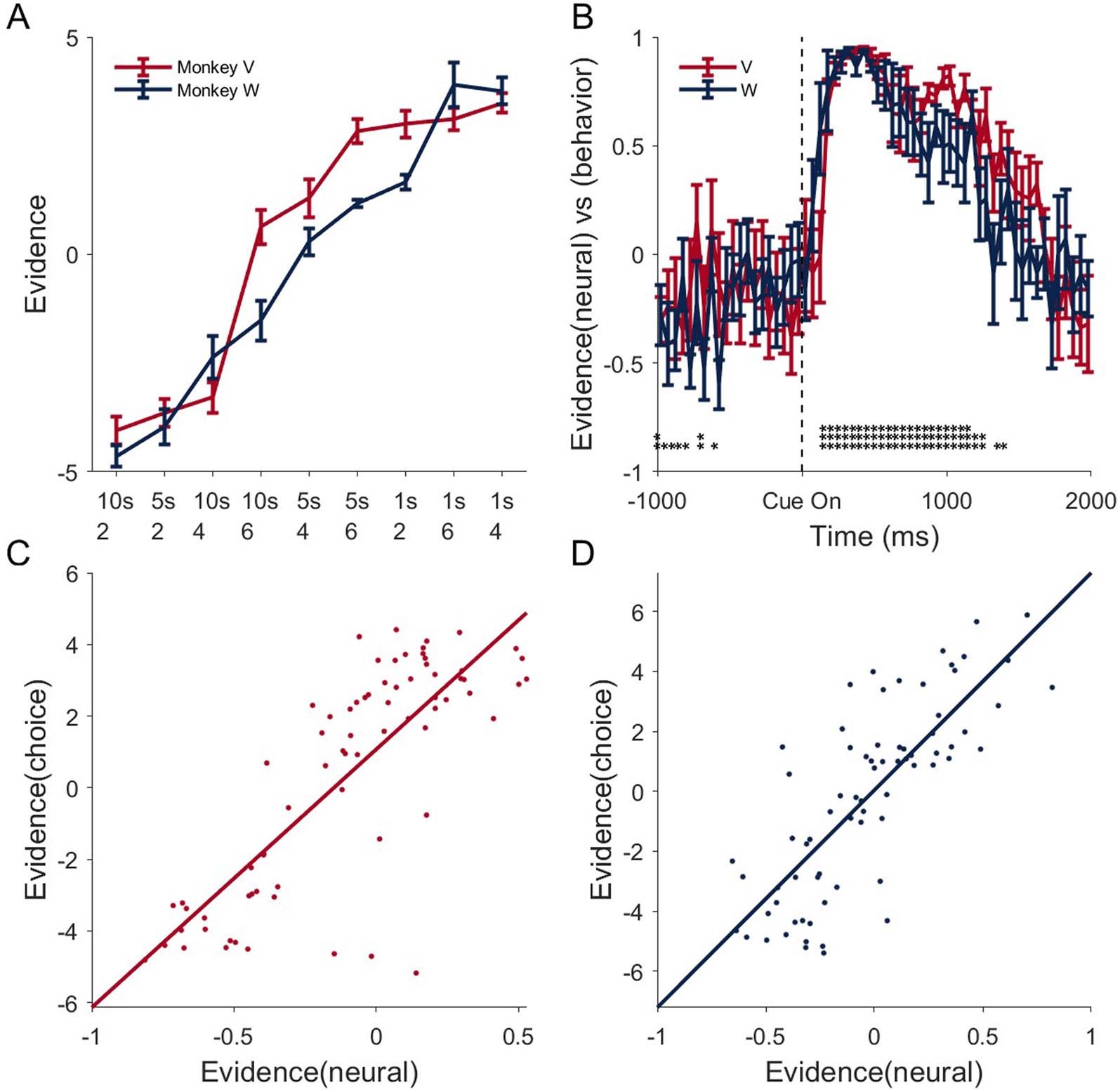

Extended Data Fig. 3: Evidence estimated from neural data vs behavior.
From: Attractor dynamics reflect decision confidence in macaque prefrontal cortex
a. Evidence in favor of choice estimated from behavior (see Methods). N = 8 for each animal. Data are presented as mean values ± SEM. b. Correlation of the behaviorally extracted evidence \({z}_{i}\) and the evidence term fitted from the neural data \({h}_{i}\) over time. A two-tailed one-sample t-test was performed at each time bin, uncorrected for multiple comparison. N = 8 for each animal. Data are presented as mean values ± SEM. c and d. Correlations between \({z}_{i}\) and \({h}_{i}\) at the mean reaction time for monkey V and W respectively. For monkey V, r = 0.82, p < 0.001; for monkey W, r = 0.67, p < 0.001.
