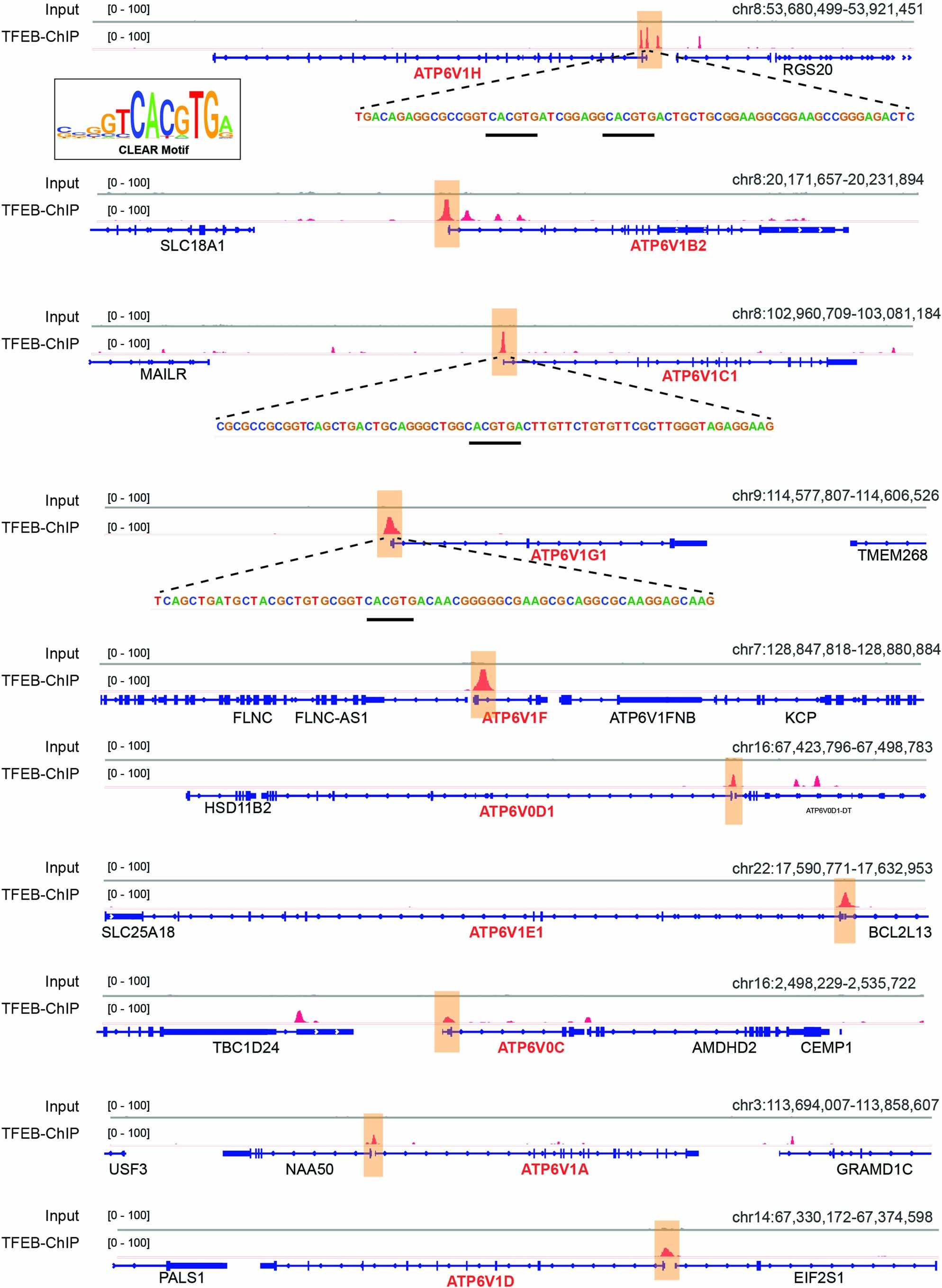

Extended Data Fig. 3: Atp6v1h gene promoter contains strong TFEB binding sites with two tandem CLEAR sequences.

From: TFEB–vacuolar ATPase signaling regulates lysosomal function and microglial activation in tauopathy

Extended Data Fig. 3: Atp6v1h gene promoter contains strong TFEB binding sites with two tandem CLEAR sequences.

Snapshots of normalized TFEB ChIP-Seq at locus of TFEB targets (ATP6V1H, ATP6V1B2, ATP6V1C1, ATP6V1G1, ATP6V1F, ATP6V0D1, ATP6V1E1, ATP6V0C, ATP6V1A, ATP6V1D). TFEB peaks are highlighted in orange box. CLEAR motifs which are zoomed-in within TFEB binding sites are marked by black lines.
