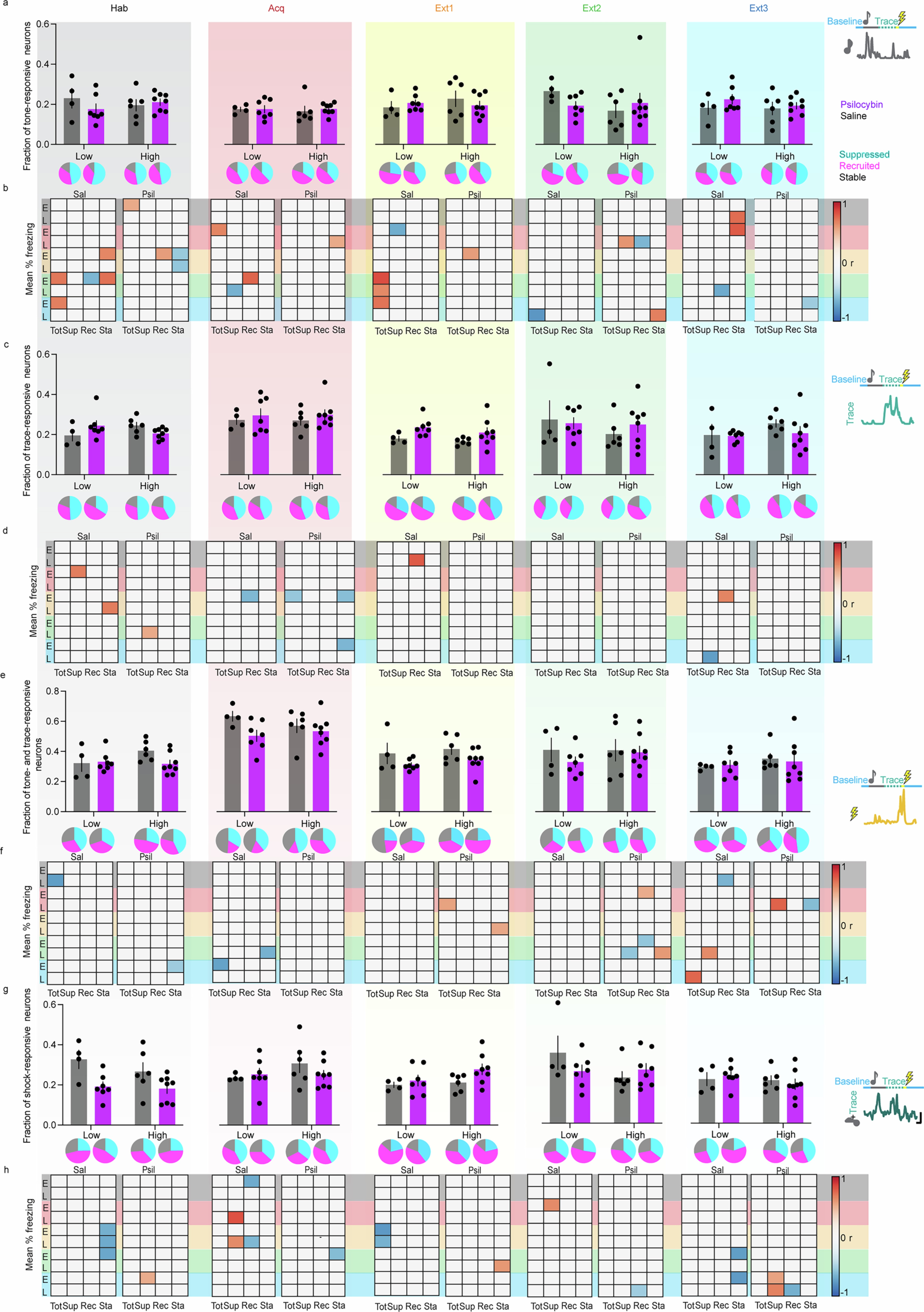

Extended Data Fig. 3: All recorded RSC neurons.
From: Psilocybin-enhanced fear extinction linked to bidirectional modulation of cortical ensembles
a, Mean fraction of tone-responsive neurons on each day. Insets are proportions of neurons with suppressed, recruited and stable responses (two-way ANOVA, Supplementary Table 3 (rows 1 and 5)). b, Heatmaps displaying significant correlations (Pearson’s ρ, P < 0.05) between proportions of total (Tot), suppressed (Sup), recruited (Rec) and stable (Sta) tone-responsive neurons on each day and percentage freezing during the early (E) and late (L) halves of each session (gray rows = Hab freezing and gray columns = fractions of neurons during Hab, red = Acq, yellow = Ext1, green = Ext2, blue = Ext3). c,e,g, Same as a for trace- (c), tone-and-trace (e) and shock-responsive (g) neurons (two-way ANOVA with Sidak correction; Supplementary Table 3 (rows 1 and 5)). d,f,h, Same as b for trace- (d), tone-and-trace (f) and shock-responsive (h) neurons. Data are represented as mean ± s.e.m.
