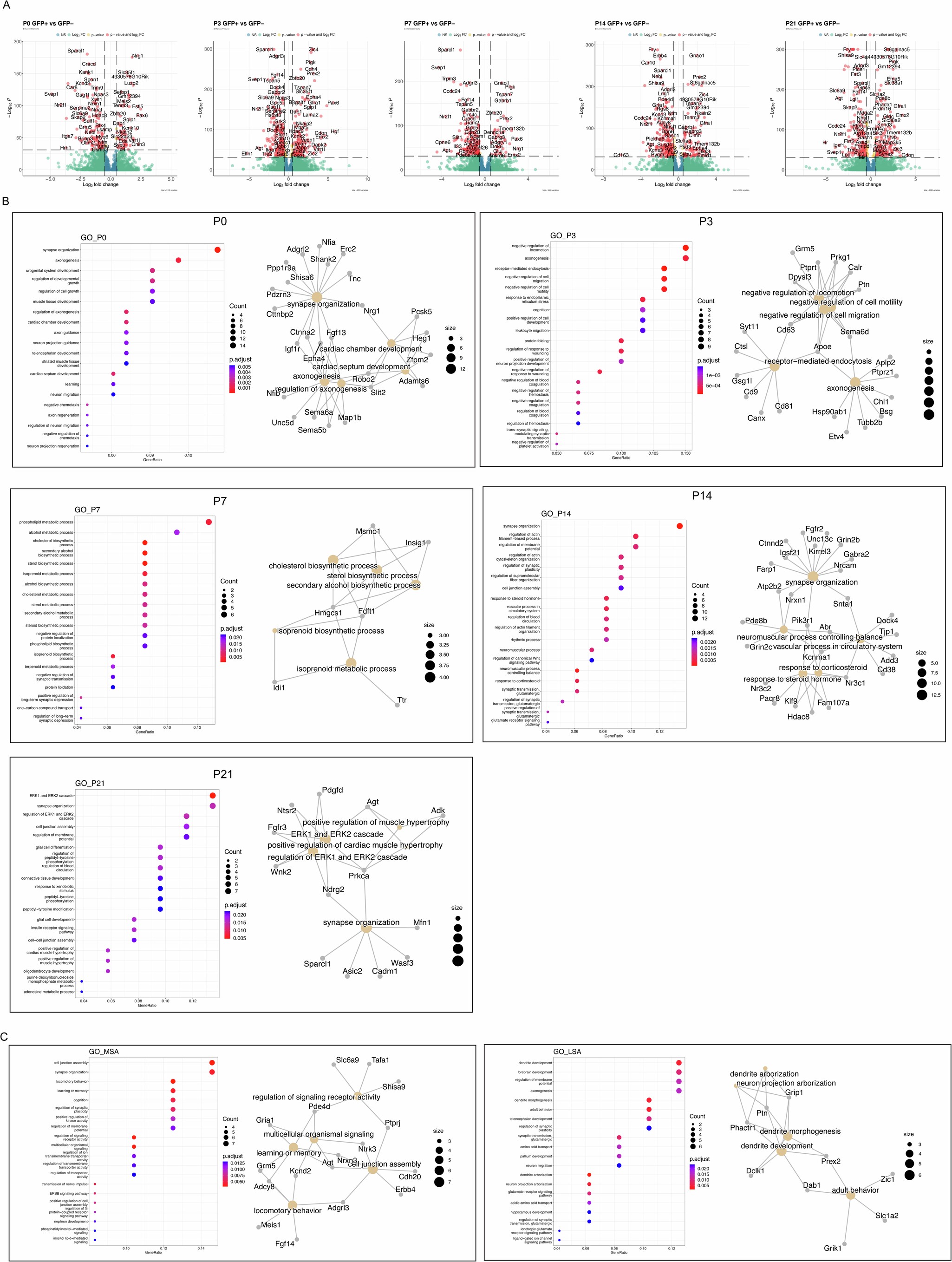

Extended Data Fig. 5: Age-dependent molecular profiles and function in septal astrocytes.
From: Astrocyte specification in the mouse septum is shaped by both developmental origin and local signals
a) Volcano plots showing the genes enriched in GFP+ versus GFP- developing astrocytes (Wilcoxon Rank-Sum Test for assessing the ranks of gene expression values differ significantly between conditions and Benjamini-Hochberg adjustment for multiple testing). b) Gene ontology analysis (top 20 gene terms) of DEGs in septal astrocytes at different ages. c) Gene ontology analysis (top 20 gene terms) of DEGs in P21 MS and LS astrocytes. Gene ontology analysis is performed in R by using enrichGO() (v4.6.2). Hypergeometric test for GO term enrichment, and Benjamini-Hochberg adjustment for multiple testing.
