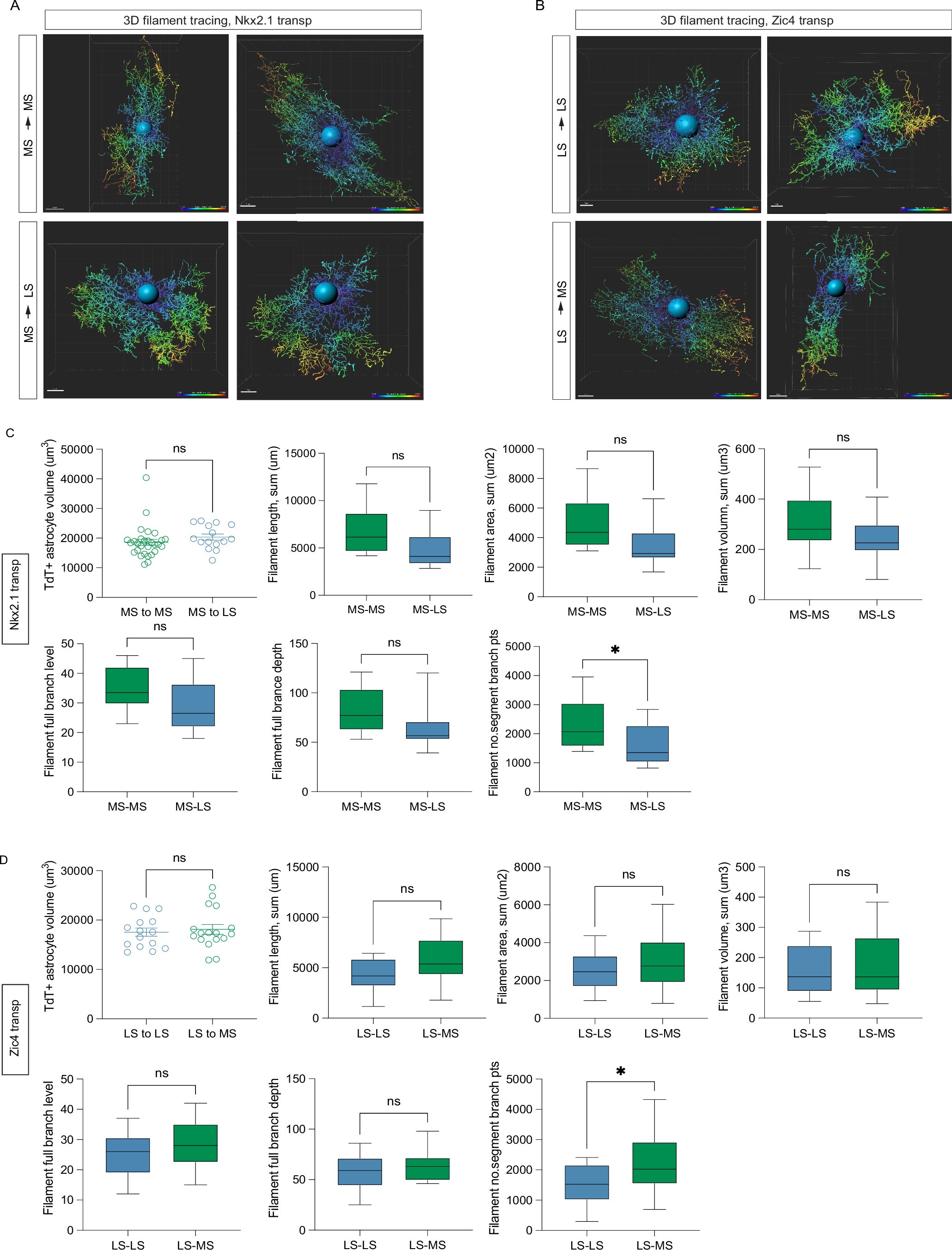

Extended Data Fig. 9: Analysis of morphological complexity in transplanted astrocytes.
From: Astrocyte specification in the mouse septum is shaped by both developmental origin and local signals
a) Representative filament tracing of Nkx2.1-grafted astrocyte branches within the MS and LS. b) Representative filament tracing of Zic4-grafted astrocyte branches within the LS and MS. c) Filament analysis of Nkx2.1-grafted astrocyte branches within the MS and LS (two-tailed, unpaired t-test with Welch’s correction, N = 4-5 transplants, a total of 10-29 astrocytes were used for filament tracing and analysis). d) Filament analysis of Zic4-grafted astrocyte branches within the LS and MS (two-tailed, unpaired t-test with Welch’s correction, N = 5-8 transplants, a total of 13-17 astrocytes were used for filament tracing and analysis). Dot graphs in C, D show the mean ± s.e.m. Box plots in C and D show the median (center), 25th and 75th percentiles (box), and min to max (whiskers). *p < 0.05, **p < 0.01, ***p < 0.001, ****p < 0.0001. When the p-value was greater than 0.05, it was stated as non-significant (ns).
