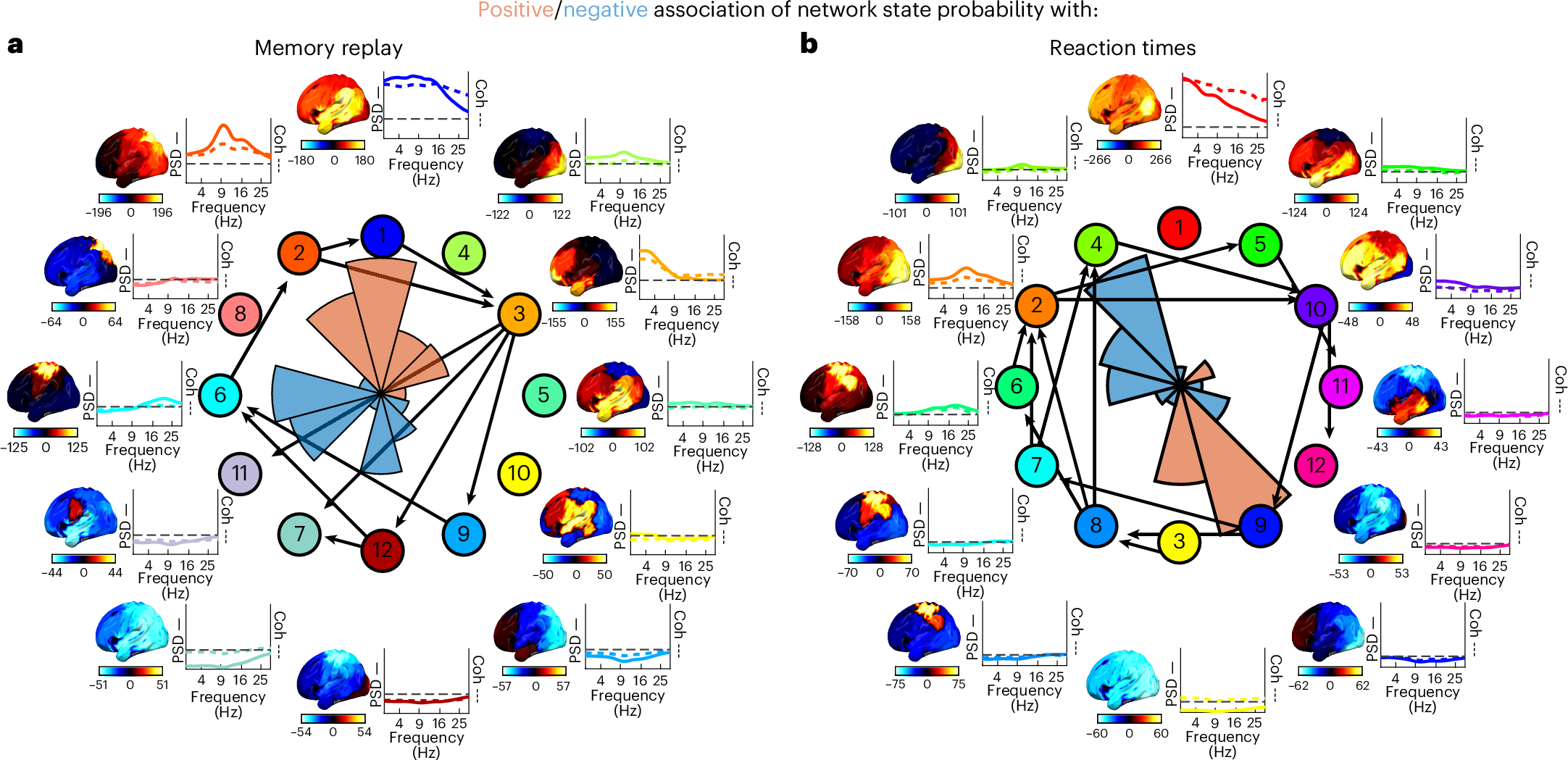

Fig. 6: Cycle phase is predictive of cognitive function.
From: Large-scale cortical functional networks are organized in structured cycles
a,b, Cycle dynamics in a memory replay dataset24,36 (a) and a visuomotor task dataset37 (b). Positive or negative associations of the network state probability with memory replay (a; ranging from 0% to 7% increased (red) or decreased (blue) probability) and reaction times (b; correlations ranging from −0.11 (blue) to +0.11 (red)) are indicated by polar histogram insets. The colored solid lines indicate the PSD and the colored dashed lines the coherence.
