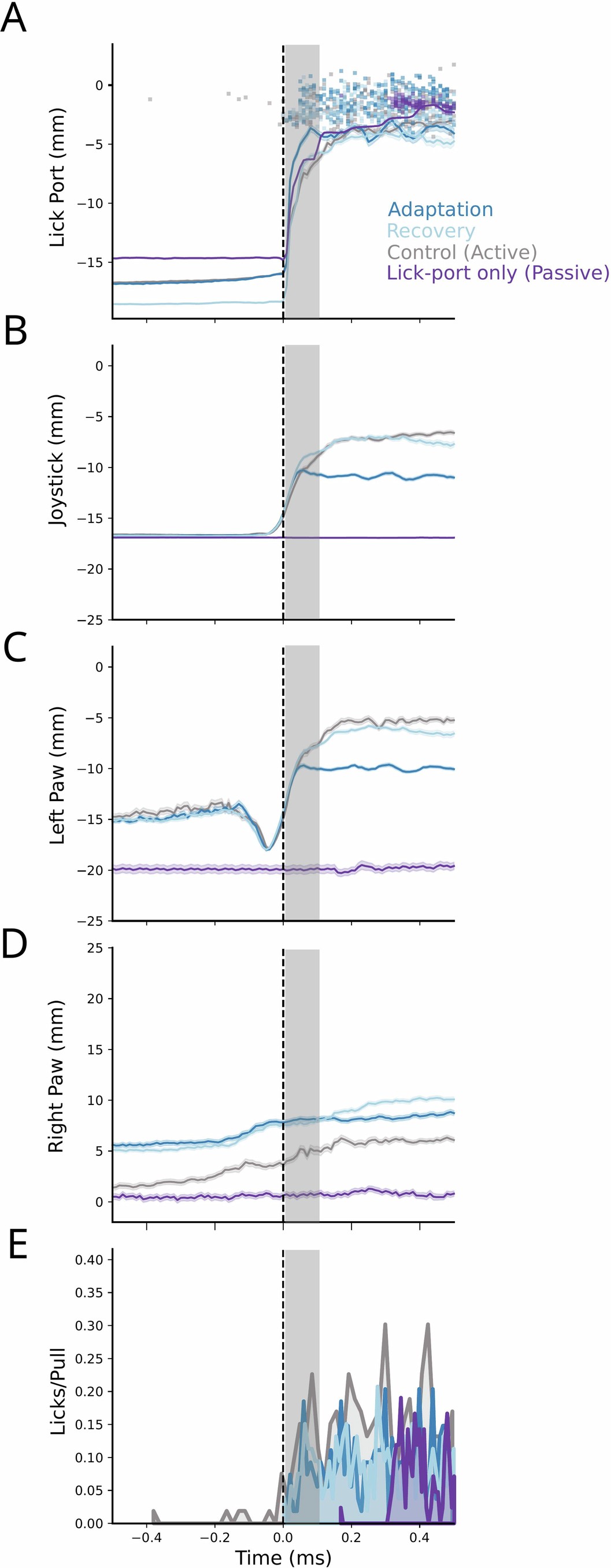

Extended Data Fig. 2: Behavior tracking for all conditions.
Mean lateral position as distance from the mouth for the recording session shown in Fig. 5. All positions tracked from high-speed video recordings with DeepLabCut. Note that prior to the initiation of the pull, limb positions are static. The passive lick-port condition does not elicit any systematic behavior. Licks in each condition are denoted as points in A to show the timing of all licks in the session. A. Lick-port position vs time since pull threshold. B. Joystick position vs time since pull threshold. C. Lateral position of the left paw vs time since pull threshold. D. Same as C for the right paw. E. PSTH of mean lick counts per pull vs time since pull threshold.
