Fig. 4: Summary of the PMFs associated with the different types.
From: Infinite hidden Markov models can dissect the complexities of learning

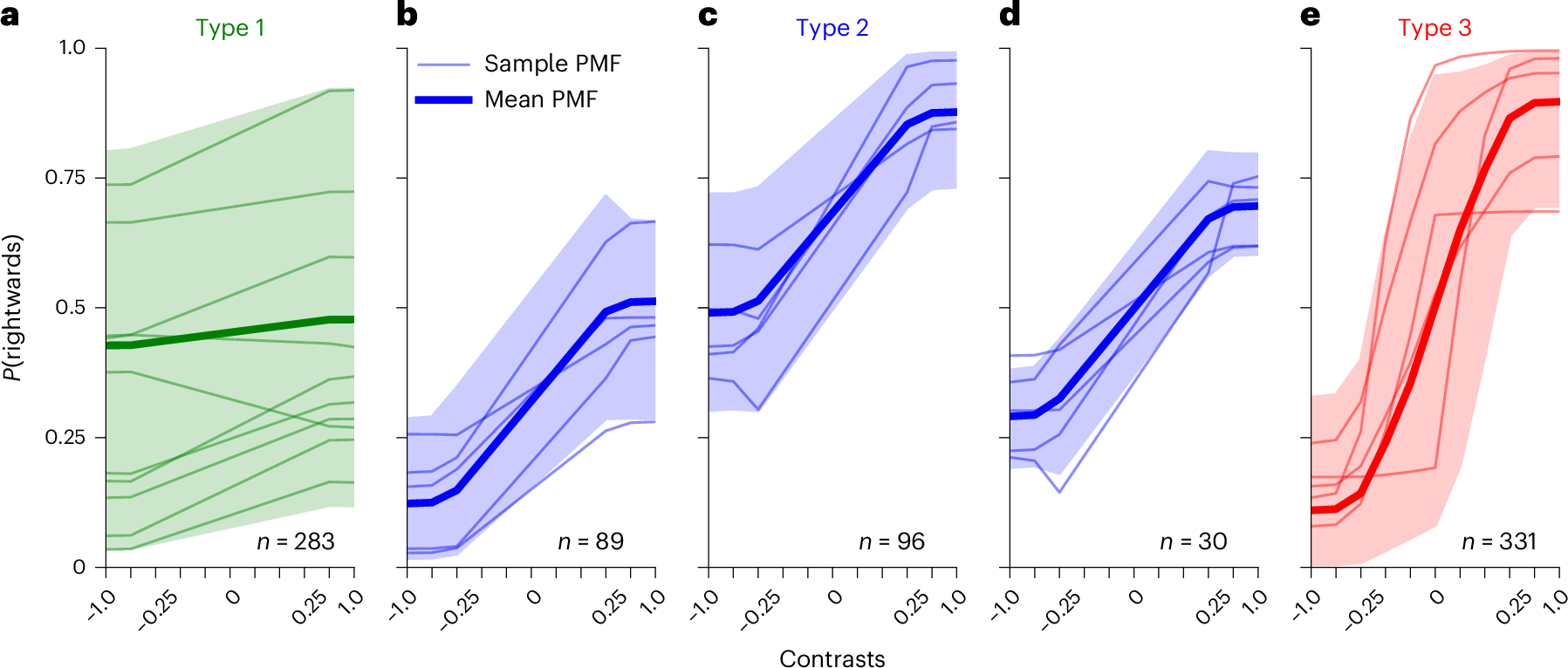

a–e, The first PMF of each state in each animal (representing response characteristics after a notable discontinuity in behavior) was collected. Each subplot shows a specific type—type 1 in green (a); type 2 in blue, further split by whether the PMF is left-biased (b), right-biased (c) or symmetric (d); and type 3 in red (e). The thick lines indicate the overall mean over PMFs of the type, which shows representative behavior of that type. The shaded regions show the range in which 95% of the PMFs fell (computed separately for each contrast level). The thin lines show samples of individual PMFs of these types. ‘n’ indicates how many PMFs of each type were present across the entire population.
