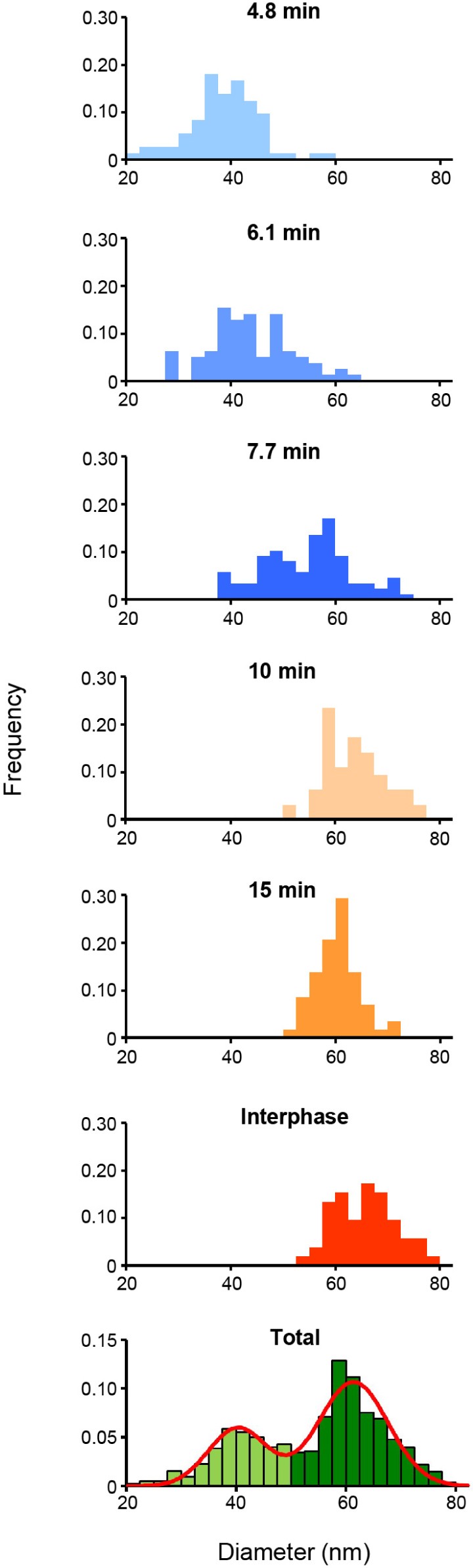

Supplementary Figure 3: Distribution of nuclear pore diameter measured in Fig. 2b.
From: Postmitotic nuclear pore assembly proceeds by radial dilation of small membrane openings
The diameter of pre- and mature pores at different times after AO is shown in histograms. The diameter of total nuclear pores is also plotted in a histogram and fitted with two Gaussian functions. The intersection of two Gaussians was 51.3 nm, and this value was used to define smaller and larger pre-pores for Fig. 2d.
