Supplementary Figure 2: Crystals of GFP-RNase(1–8) invariably display a needle morphology.
From: Atomic insights into the genesis of cellular filaments by globular proteins

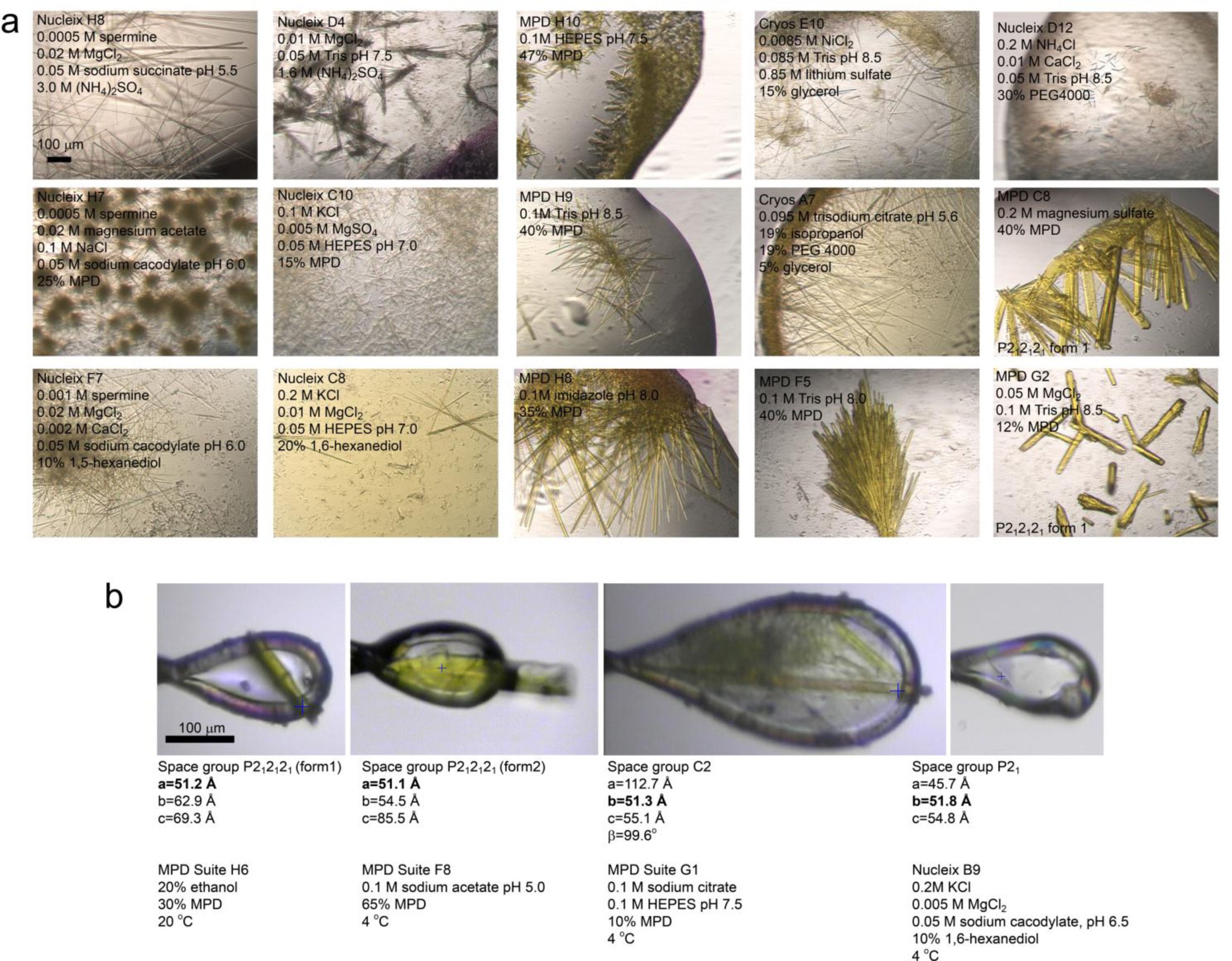

This needle morphology recapitulates on a larger scale the rod-like shape of GFP-RNase assemblies observed in cells. (a) A representative sampling of the many conditions producing GFP-RNase(1-8) crystals. Only a small percentage of these conditions were tested for diffraction. Each subpanel reports the crystallization kit and composition of the reservoir that produced the crystal. The scale bar at the top left applies to all subpanels. (b) The four crystals used for structure determination, each with distinct crystal packing and unit cell parameters. The scale bar at the left applies to all subpanels.
