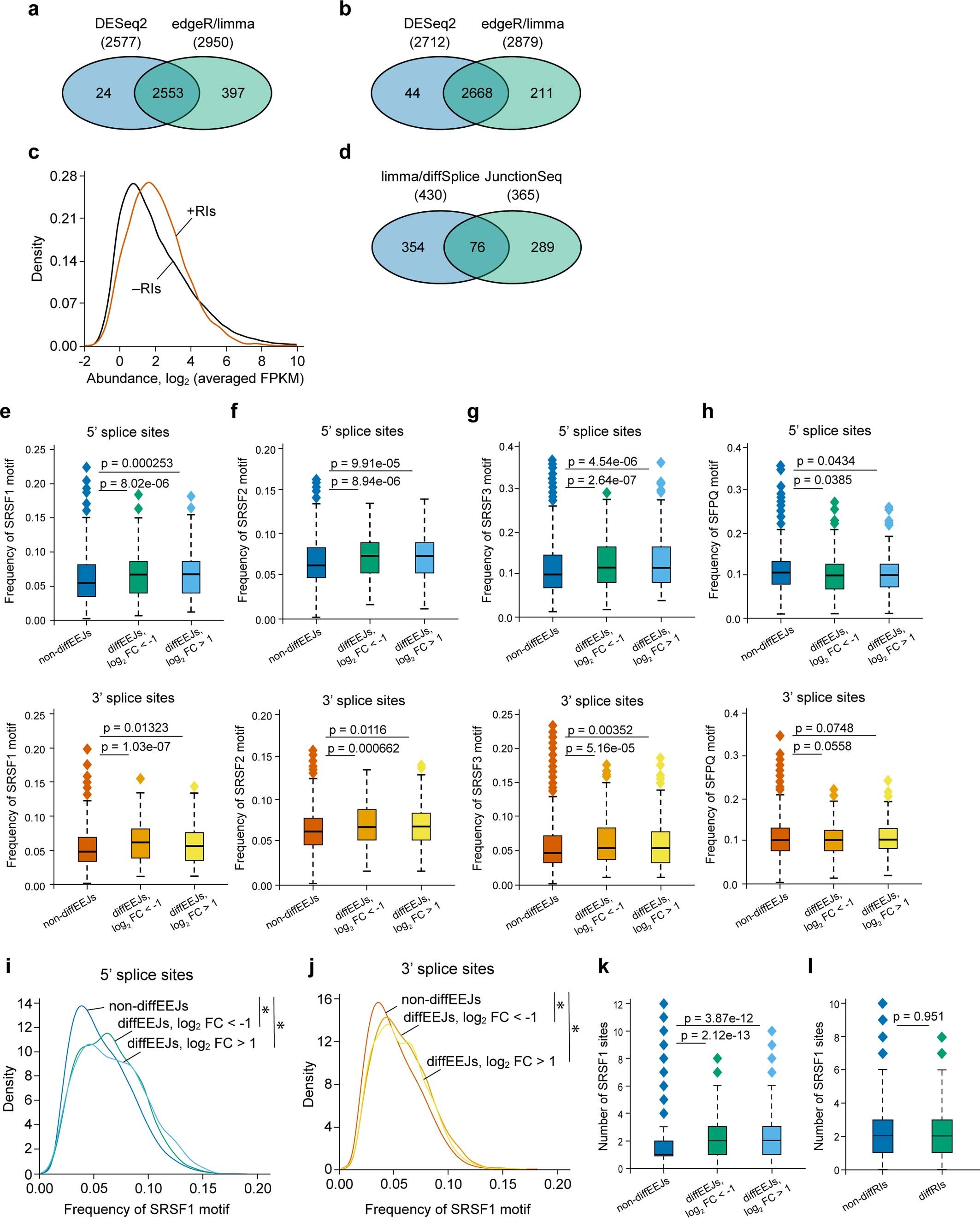

Extended Data Fig. 4: Knockdown of PRMT5 leads to differential splicing in the transcriptome of THP-1 AML cells.

a, Two independent algorithms (DESeq2 and edgeR-limma) identified 2974 RIs in the transcriptome of THP-1 cells. b, In total 2923 of 45450 Cufflinks-assembled transcripts of the THP-1 cells contain DESeq2- or edgeR-limma-detected RIs. Of these, 2668 transcripts are common between the two algorithms. c, Density plot of the transcript abundance demonstrating that the transcripts with RIs (+ RIs) are highly expressed in the transcriptome of THP-1 cells comparing to RI-free (–RIs) ones. d, The knockdown of PRMT5 leads to differential usage of a subset of EEJs in the transcriptome of THP-1 cells. The differentially used EEJs were determined using two independent algorithms (limma-diffSplice and JunctionSeq) with moderate overlap between the results. e-g, SRSF1 (e), SRSF2 (f) and SRSF3 (g) motifs are significantly enriched both at the 5′ and 3′ splice sites of the differential EEJs (dynamic thresholding). h, SFPQ motif is not significantly enriched at the 5′ or 3′ splice sites of the differential EEJs (dynamic thresholding). i-j, Density diagrams of SRSF1 motif frequency at the 5’ and 3’ splice sites of the differential and non-differential EEJs in U-87 MG cells. Stars indicate statistically significant differences (p < 0.01) (dynamic thresholding). k-l, Median absolute numbers of SRSF1 motifs in differential and non-differential splicing events in U-87 MG cells (fixed thresholding). Boxplot summary (e-h, k, l): outliers (diamonds), minimum (lower whisker), first quartile (lower bound of box), median (horizontal line inside box), third quartile (upper bound of box), interquartile range (box), and maximum (upper whisker).
