Extended Data Fig. 6: Validation of Rad24-RFCADP structure.
From: Mechanisms of loading and release of the 9-1-1 checkpoint clamp

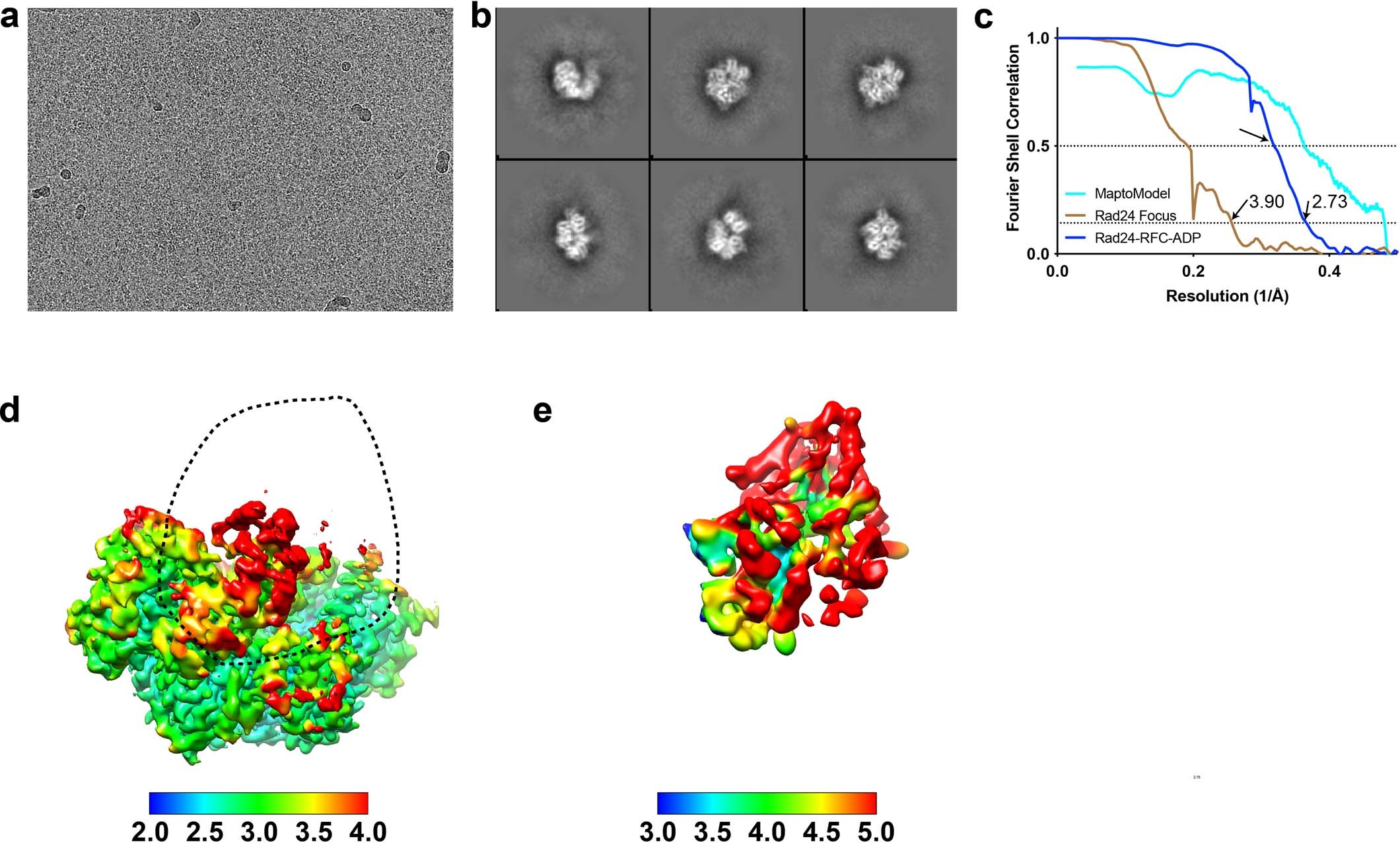

a, Representative cryo-EM image of vitrified Rad24-RFC in the presence of ADP. b, Representative two-dimensional averages of Rad24-RFCADP. c, Plot of Fourier shell correlations between two independent consensus half-maps (blue), two independent Rad24 focus refinement half-maps (brown), and the consensus map and model (cyan). d-e, Cryo-EM density maps of consensus (d) and Rad24 focus refinement (e) maps colored by local resolution in Å. Region included in the mask for the Rad24 AAA + focused refinement (e) is denoted by the dashed line in d.
