Extended Data Fig. 6: Residual dipolar coupling analysis of free structure in solution vs. crystal.

From: An atypical RNA quadruplex marks RNAs as vectors for gene silencing

Extended Data Fig. 6: Residual dipolar coupling analysis of free structure in solution vs. crystal.The alternative text for this image may have been generated using AI.

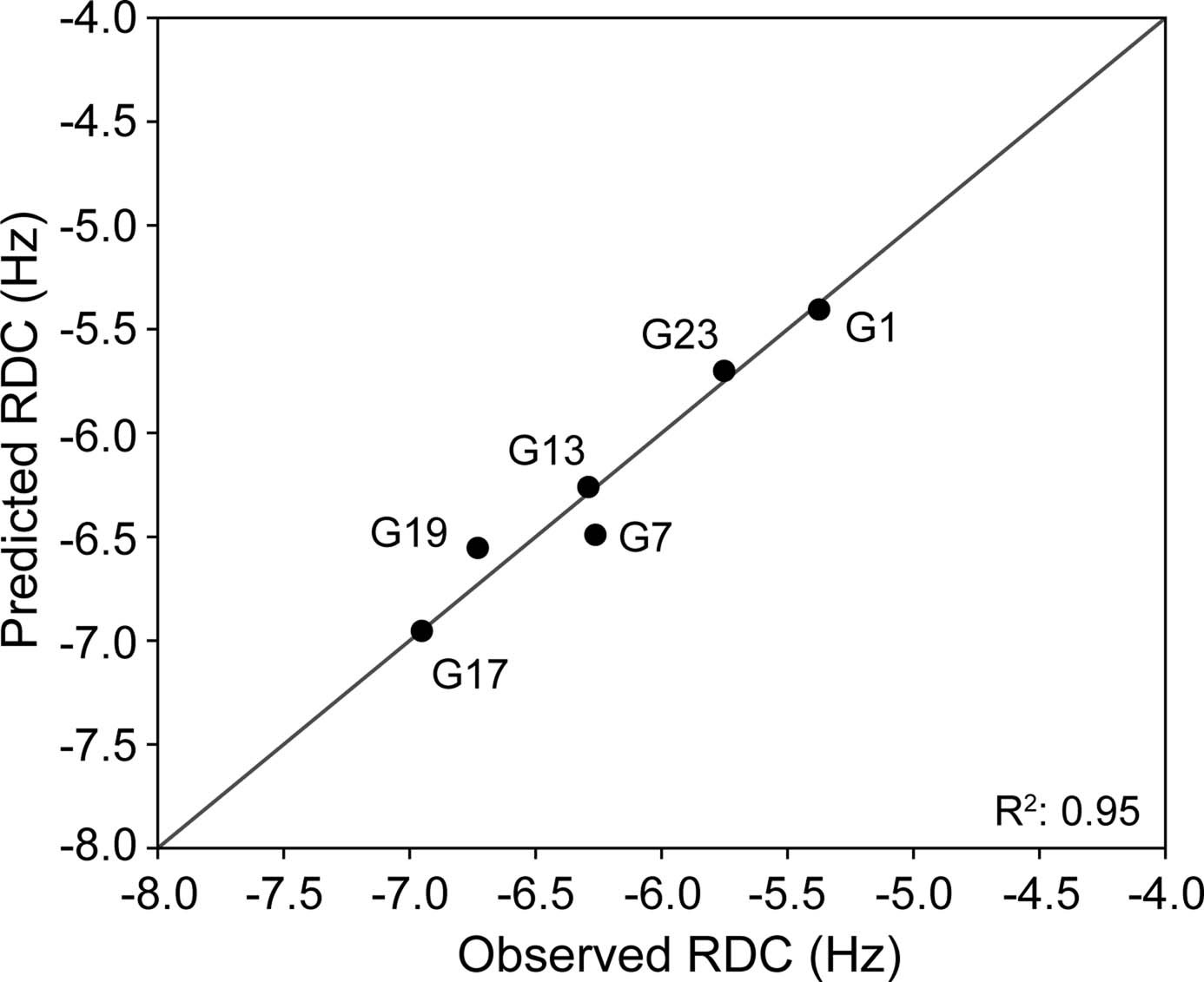

Measured residual dipolar couplings (RDCs) vs. predicted RDCs from the (GU)12-NMM crystal structure. NMR RDCs were measured for 13C,15N G-labeled (GU)12 RNA (observed) and plotted against the predicted RDC values from the (GU)12-NMM crystal structure, R2 = 0.95.
