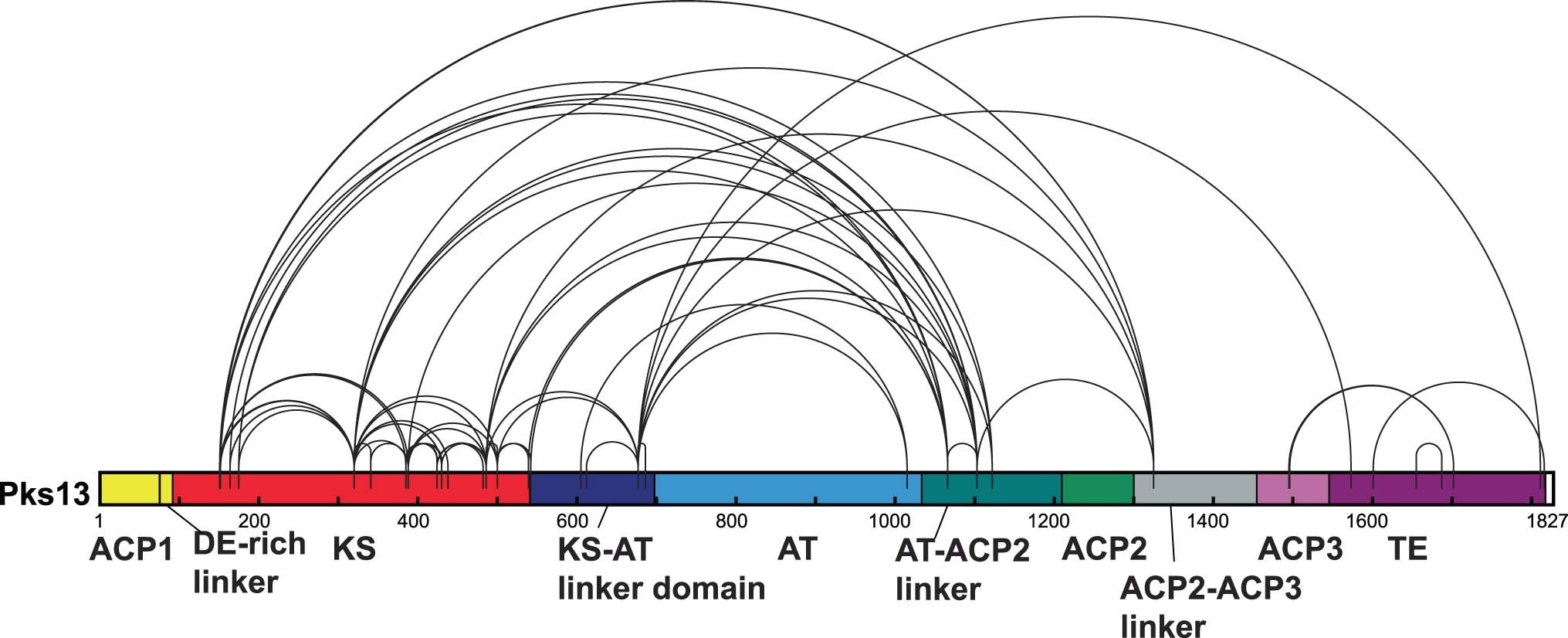

Extended Data Fig. 9: Linkage map depicting all unique K-K linkages of DSSO cross-linked Pks13.
From: Structure and dynamics of the essential endogenous mycobacterial polyketide synthase Pks13
The 57 unique K-K inter-linked residues are summarized in this linkage map as black lines connecting two Pks13 lysine residues. Shown is a cartoon diagram of the primary sequence structure of Pks13 with domains labeled as in Fig. 1a. The sequence numbers of lysine residues indicated by linear position in this figure are included in Supplementary Tables 2, 3, 5, and 6.
