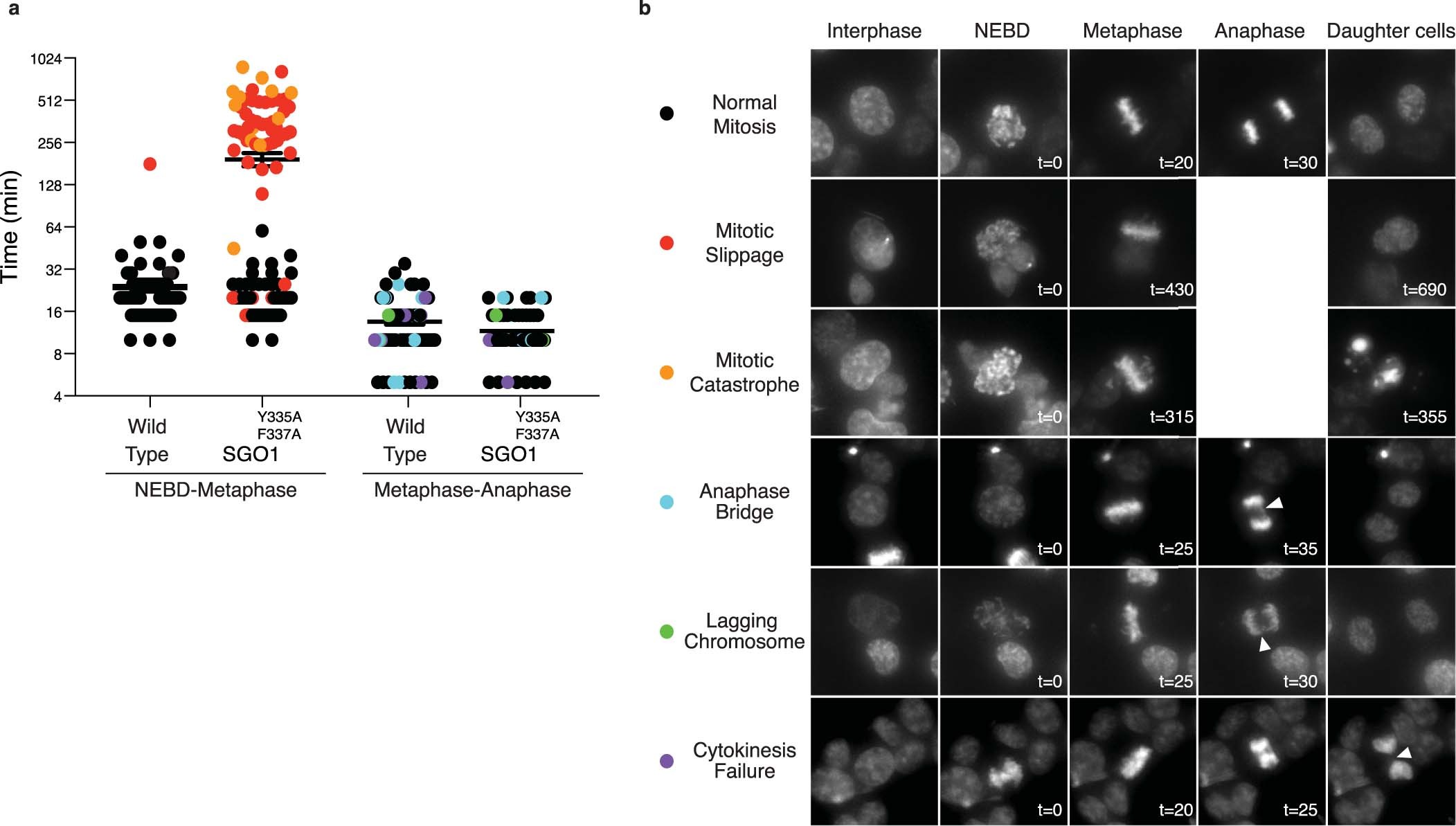

Extended Data Fig. 3: SGO1 Y335A/F337A cells display mitotic delay.
a, Time in mitosis from Nuclear Envelop Breakdown (NEBD) to metaphase, and from metaphase to anaphase in wild type and SGO1 sY335A/F337A cells. Mean +/− SD of a representative graph of two independent experiments with over 100 mitotic cells analysed. b, Types of mitotic progression defects for the cells as timed in (a) including representative images of the progression through mitosis. Time is depicted in minutes. Arrowheads mark the segregation defect observed upon anaphase onset.
