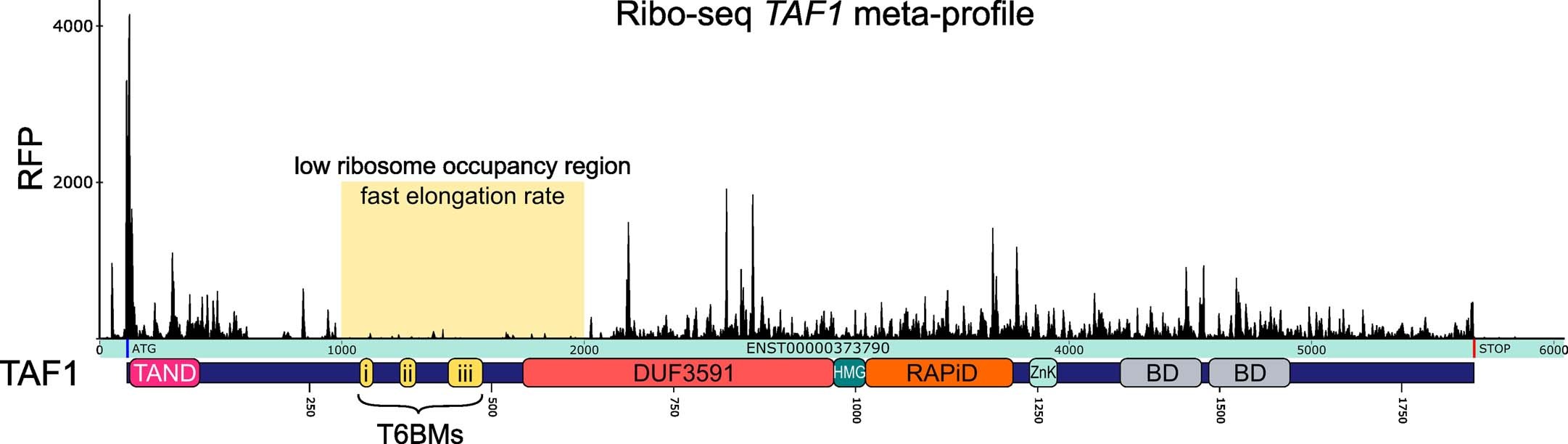

Extended Data Fig. 7: TAF1 ribosome footprinting metaplot.
From: Hierarchical TAF1-dependent co-translational assembly of the basal transcription factor TFIID
Ribosome occupancy meta-profile of human TAF1 derived from merging the available Ribo-seq datasets present in RiboCrypt browser (https://ribocrypt.org/). The yellow window highlights a region of low ribosome occupancy encompassing the three TAF6-binding motifs (T6BMs). Footprints signals coming from reading frames 2 and 3 are omitted for clarity. Below, the TAF1 functional domains are aligned to the CDS. Protein numbering matches the transcript used for this analysis (ENST00000373790). TAF1 domains are shown as in Fig. 5a. RFP, ribosome footprints.
