Extended Data Fig. 5: High resolution structure of the yeast NuA4 complex.

From: The structure of the NuA4–Tip60 complex reveals the mechanism and importance of long-range chromatin modification

Extended Data Fig. 5: High resolution structure of the yeast NuA4 complex.

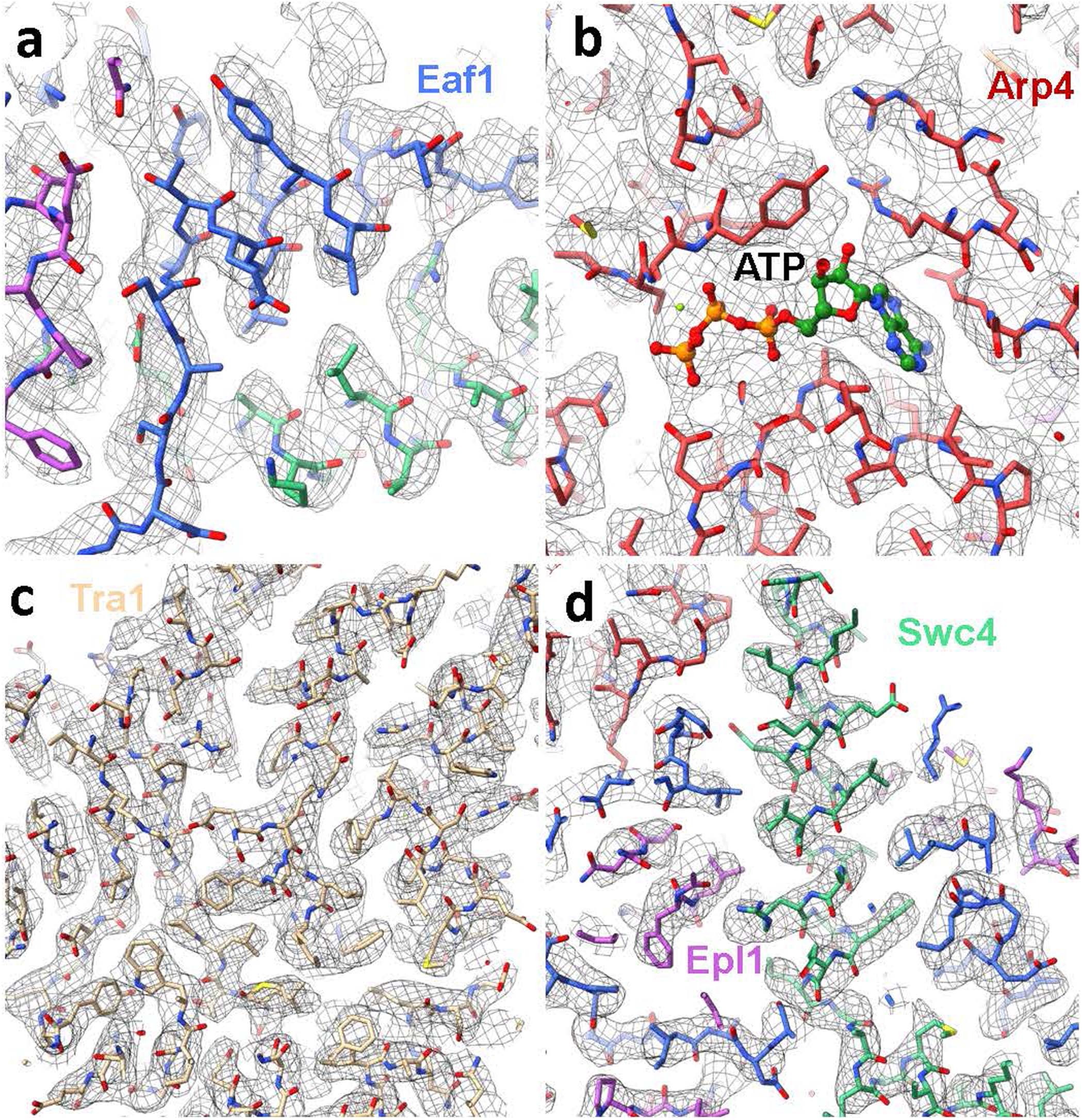

Representative regions illustrating the quality of the cryo-EM map and the high-resolution structural features. Cryo-EM map and atomic model showing that side chains are clearly identified. a, Part of the Eaf1 subunit b, ATP molecule bound in the Arp4 active site. c, Part of the Tra1 subunit. d, Interaction network between the Swc4, Epl1 and Eaf1 subunits in the neck region.
