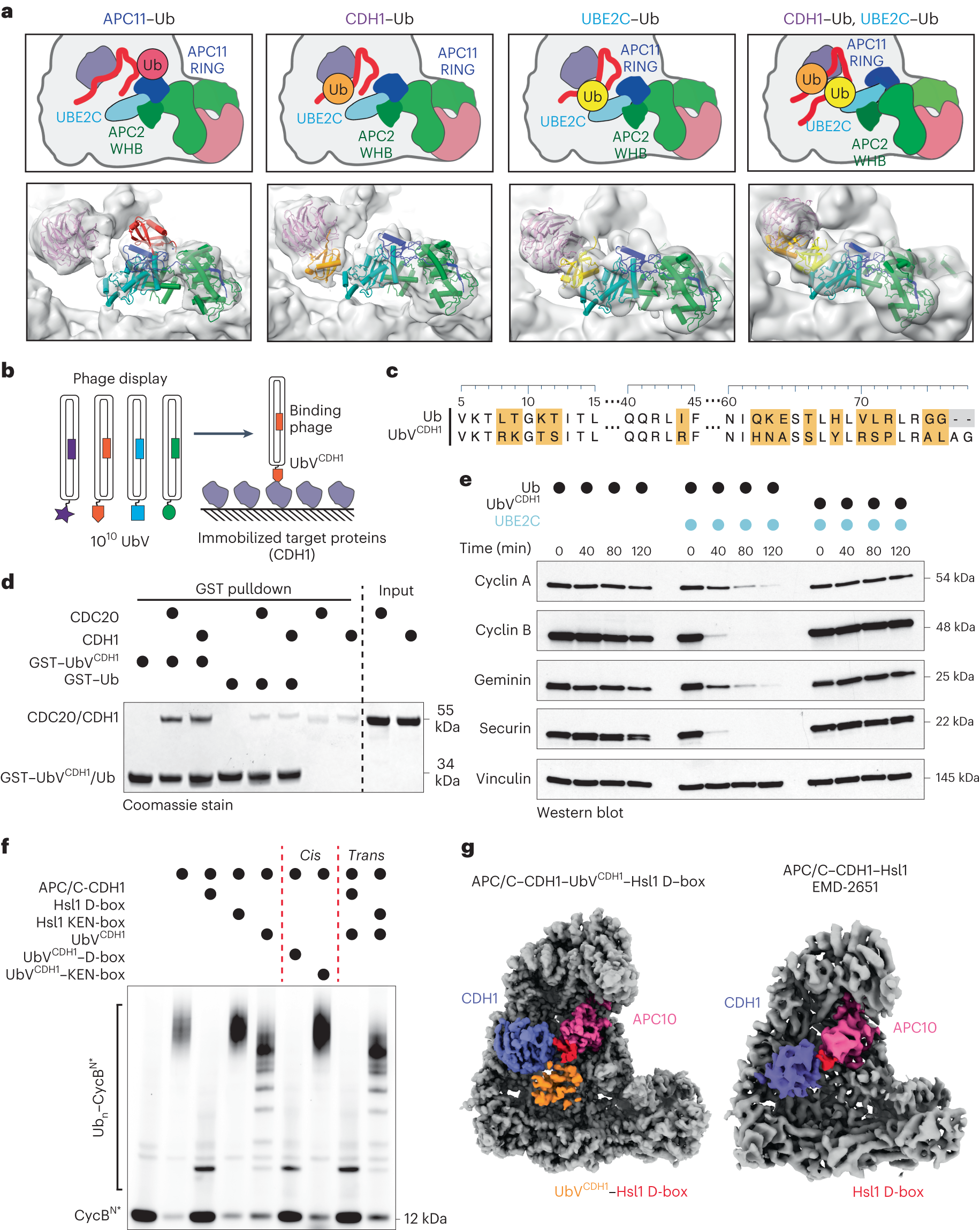

Fig. 4: Analysis of active APC/C-dependent ubiquitination architecture reveals unexpected Ub binding modes.
