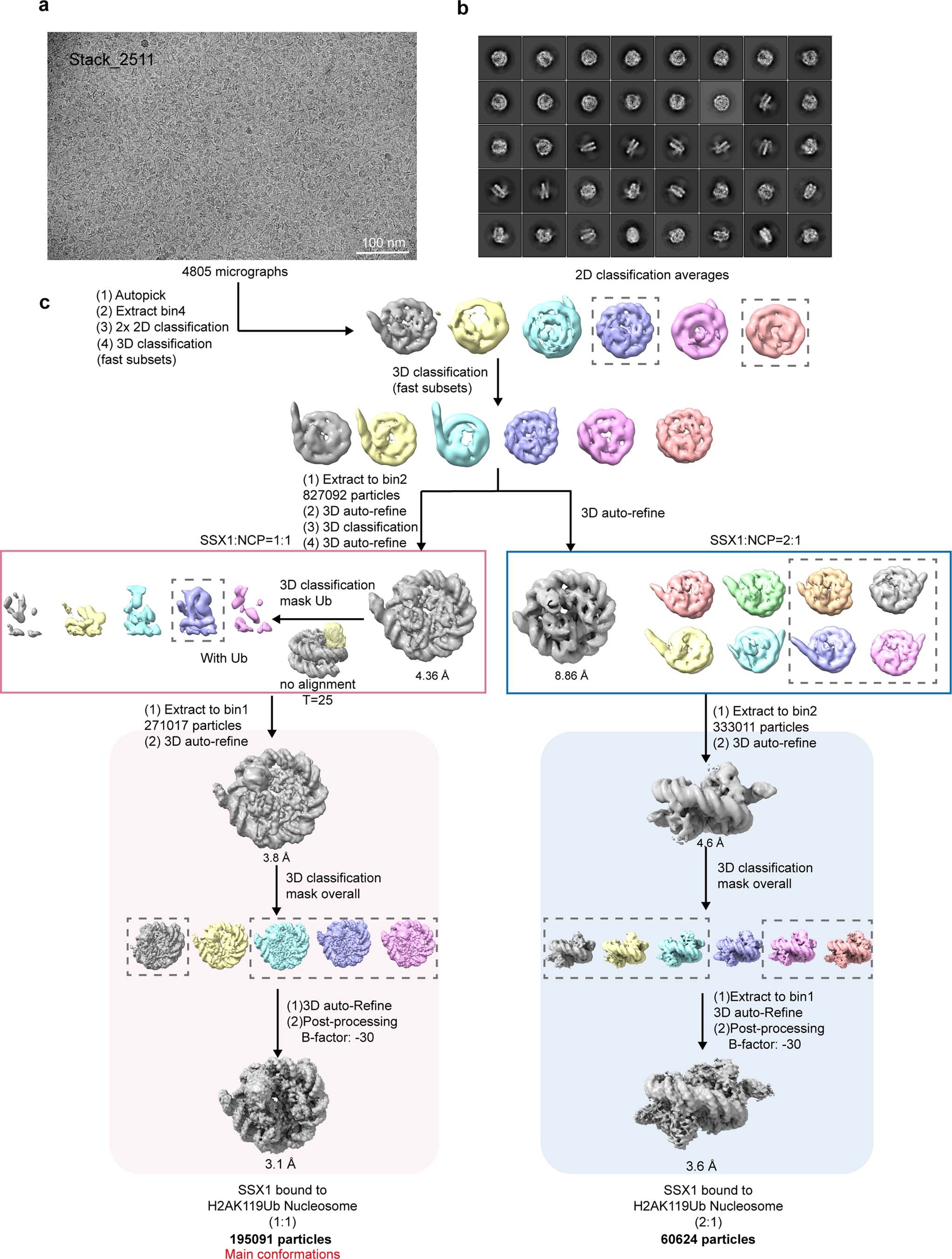

Extended Data Fig. 2: Structure determination of the SSX1-H2AK119Ub nucleosome complex.
a. Representative motion-corrected micrograph from data set. b. 2D classification averages of SSX1-H2AK119Ub complex. c. Flow chart of data processing steps.
