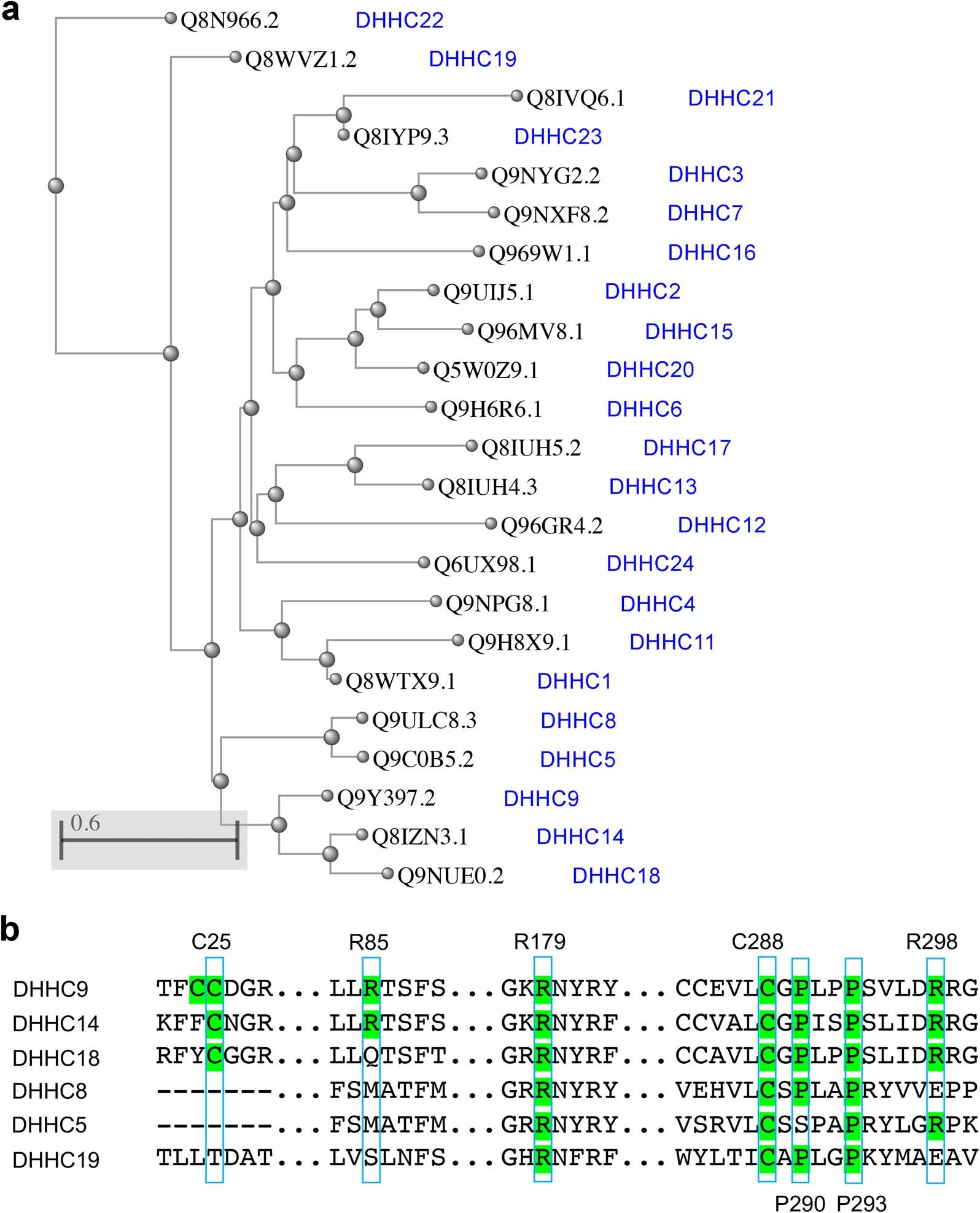

Extended Data Fig. 10: Alignment of the protein sequence of DHHC9 with that of its human homologs.
From: Regulation of RAS palmitoyltransferases by accessory proteins and palmitoylation
a, The distance tree of human DHHC acyltransferases was generated by alignment of the protein sequences using the Basic Local Alignment Search Tool (BLAST)40. The UniProt ID and the corresponding name of each DHHC acyltransferase are shown. b, Alignment of the protein sequences of DHHC9 with DHHCs that share the highest homology with DHHC9 using BLAST.
