Extended Data Fig. 1: Cryo-EM analysis of the Pol II-TCR-ELOF1 complex.

From: Structural basis for RNA polymerase II ubiquitylation and inactivation in transcription-coupled repair

Extended Data Fig. 1

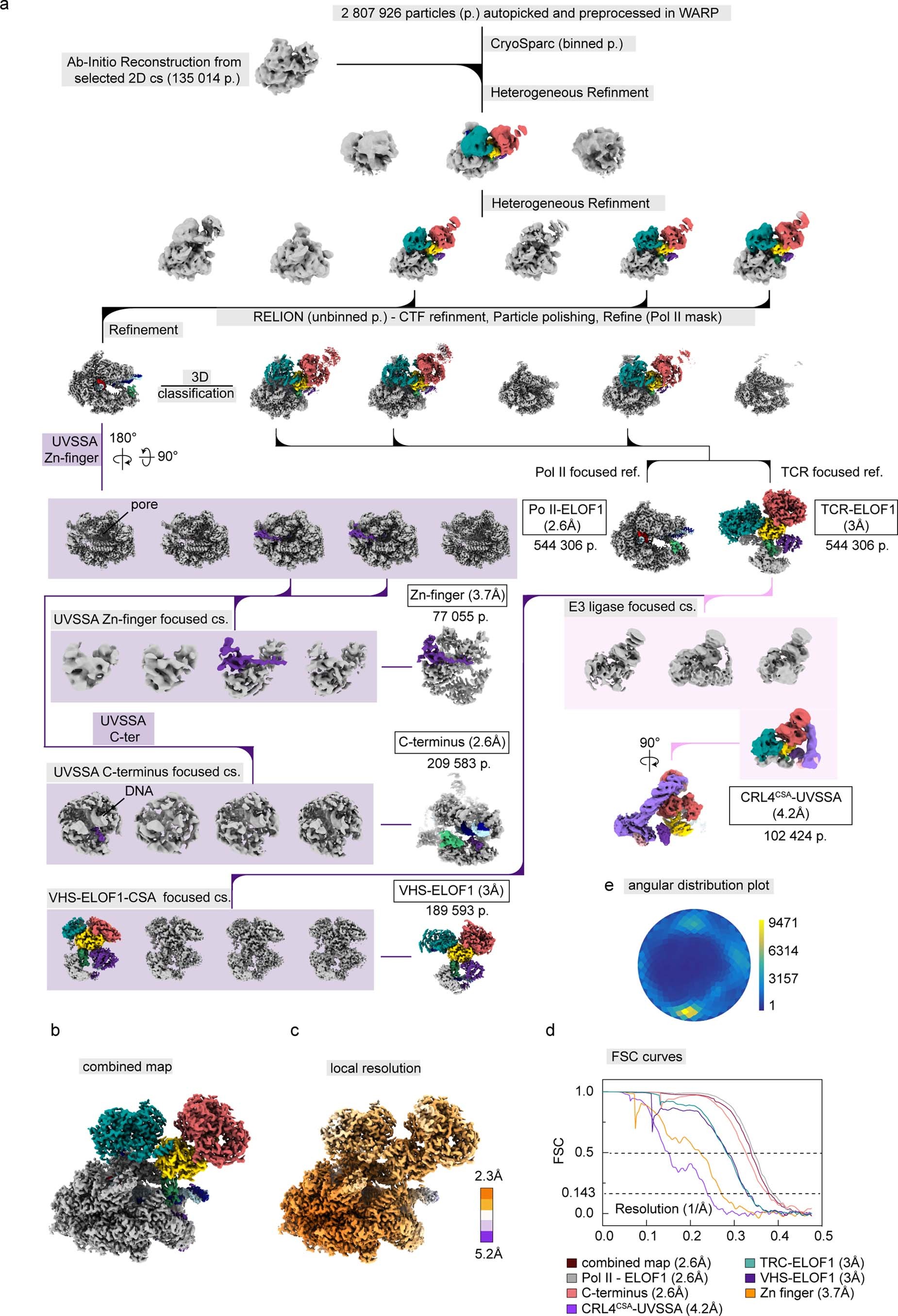

a. Processing tree. The number of particles included in refined maps is indicated below the map, together with the map resolution. Classes used for further processing are color-coded according to complex subunits. b. Final composite map. c. Local resolution estimate for the composite map. d. Fourier shell correlation plot for all focused refined maps and the composite map. e. Angular distribution plot for the high-resolution Pol II class used as a starting point for focused classifications.
